PrivacyShield® Absorptive Soundproofing Blanket

PrivacyShield® Absorptive Soundproofing Blanket
UT Dallas Lab lined a closet with PrivacyShield® Absorptive Soundproofing Blankets to reduce the noise transmission of their machinery.
UT Dallas Lab lined a closet with PrivacyShield® Absorptive Soundproofing Blankets to reduce the noise transmission of their machinery.
Plastics Manufacturer - Plastic granulator enclosure and conveyor hood using acoustic blankets to block noise.
Plastics Manufacturer - Granulator using AudioSeal® blanket enclosure to encapsulate noise at the source.
Plastics Manufacturer - Granulator using AudioSeal® blanket enclosure to encapsulate noise at the source.
PrivacyShield® Absorptive Soundproofing Blanket installed around an industrial hopper.
MAC Fitness easily installs PrivacyShield® Absorptive Soundproofing Blankets as a temporary barrier wall. Custom manufactured to size, the sound blankets arrive ready to hang.
MAC Fitness easily installs PrivacyShield® Absorptive Soundproofing Blankets as a temporary barrier wall, so that noise from the spin class doesn't disturb their neighbors.
MAC Fitness is using PrivacyShield® Absorptive Soundproofing Blankets to keep the noise from their spin cycle class from bothering their retail neighbors.
Trustpilot

There is a minimum order quantity of 2 for this product.

Sold By: Each
Minimum Order Quantity: 2
Size: 54" x 96"
Clear
    Reset options
SKU: BLNABBC13

Return Policy: This product is non-returnable

Typical Shipping Lead Time: call for lead times

Data Sheet Data Sheet for PrivacyShield® Absorptive Soundproofing Blanket
CAD Drawings CAD Drawings for PrivacyShield® Absorptive Soundproofing Blanket
Cutting Guide Sound Blanket Cutting Guide
Specifications Specifications for ABBC-13 1-inch Sound Control Blanket
Specifications Specifications for ABBC-13 2-inch Sound Control Blanket

Industrial grade quilted acoustical blankets may be cleaned by using a vacuum cleaner or broom to remove the debris from the blanket surfaces. In addition, any product surface that is not a scrim facing may be cleaned with an air hose or any non-solvent based cleaning product. A typical “all-purpose cleaner” that contains ingredients such as “water, detergents, and grease cutter” is recommended. Similar suitable brand names are Formula 409, Top Job, Spic & Span, and Mr. Clean.

Product Description

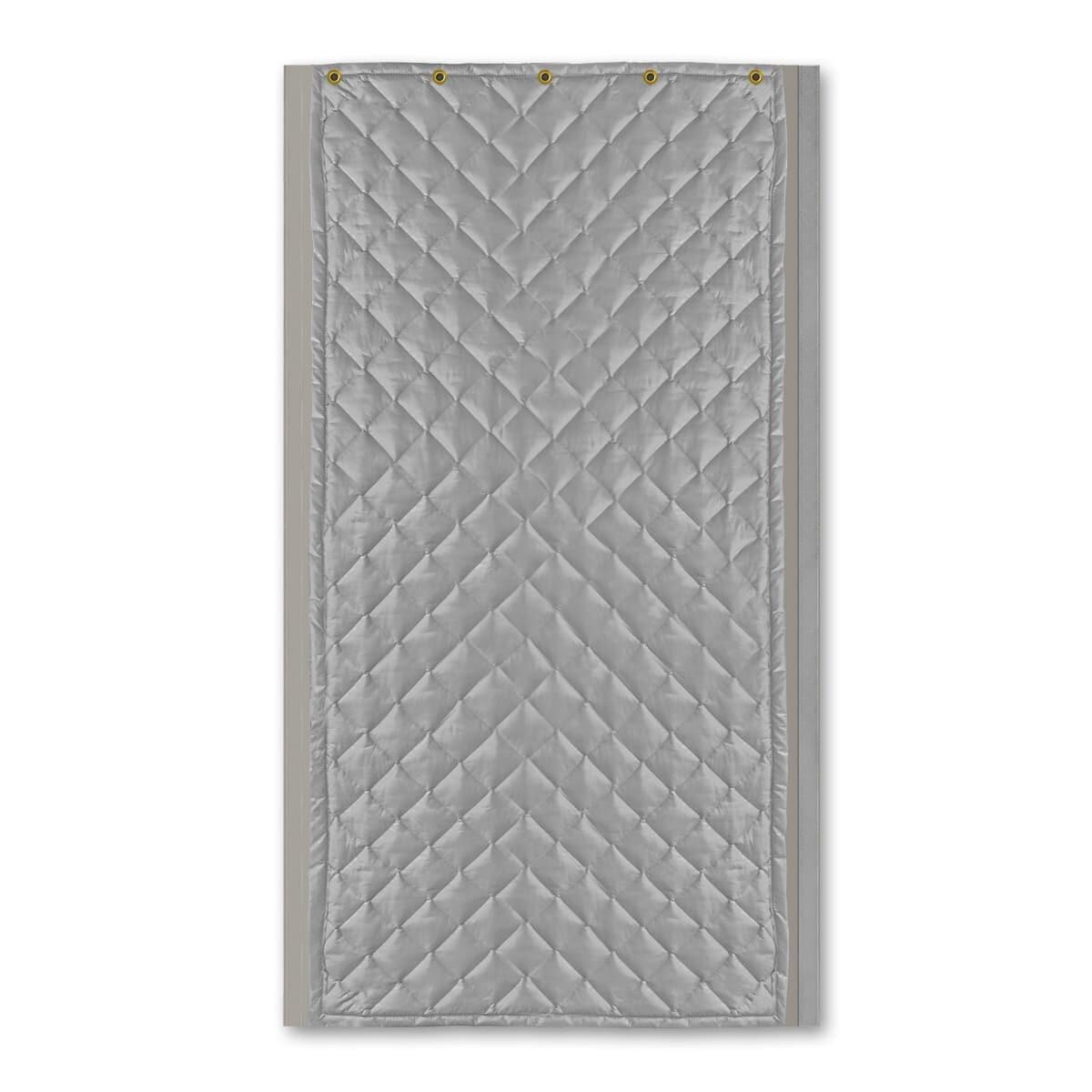

The PrivacyShield® Absorptive Soundproofing Blanket, (formerly the ABBC-13 AudioSeal® Combination Sound Blanket) includes both sound blocking and sound absorbing material, making it an ideal noise barrier for interior spaces where excessive echo is a problem as well. These blankets are made by adhering a mass loaded vinyl sound barrier to either a 1 in. or 2 in. thick acoustical fiberglass batting that is then quilted with a vinyl-coated fiberglass cloth facing. The absorptive quilted fiberglass side of the blanket should face towards the sound you wish to absorb.

These sound attenuation blankets work like curtain panels. They are constructed with grommets across the top edge and Velcro® along the vertical edges which make them easy to hang, layer, and install. Typical uses include curtain material in acoustical enclosures, room partitions, and as wall covering where abuse resistance and excellent durability is required.

Standard 4-1/2′ x 8′ blanket panels may be ordered online. Other sizes up to 4-1/2 ft. x 25 ft. are available — please contact us with your specific requirements.

Technical Information for PrivacyShield® Absorptive Soundproofing Blanket

  • Size:
    • Standard: 54″ (w) x 96″ (h)
    • Custom: Up to 54″ x 25′
  • Thickness: 1″, 2″ (Standard), 4″ (Special Order); actual thickness may vary after quilting
  • Construction: Vinyl coated polyester faced quilted fiberglass backed with a one pound per square foot reinforced mass loaded vinyl sound barrier
  • Intended Use: Interior, sound absorption, sound blocking
  • Weight:
    • 1″ Thick: 1.22 lbs. / sq. f.t
    • 2″ Thick: 1.43 lbs. / sq. f.t
    • 4″ Thick: 1.80 lbs. / sq. f.t
  • Color:
    • Facing: Grey, Tan (Standard) Black, Off-White (Special Order)
    • Barrier: Grey, Tan
  • Temperature Range: -20 deg. F to 180 deg. F
  • Fire Rating: Class 1 or A per ASTM E84
Sound Absorption (Hz)
Thickness 125 250 500 1000 2000 4000 NRC
1″ 0.12 0.47 0.85 0.84 0.64 0.62 0.70
2″ 0.07 0.27 0.96 1.13 1.08 0.99 0.85
4″ 0.21 0.89 1.09 1.17 1.13 1.07 1.05
Sound Blocking Performance (Hz)
Thickness 125 250 500 1000 2000 4000 STC
1″ 11 16 24 30 35 35 27
2″ 13 20 29 40 50 55 32
4″ 16 21 30 41 52 56 34

prop 65 warning icon WARNING: This product can expose you to chemicals including formaldehyde and DINP, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

For more information on our PrivacyShield® Absorptive Soundproofing Blanket,
call us at 800.782.5742 or contact our sales department.
