PrivacyShield™ Plenum Return Silencer G2, when placed over an existing air return grill, reduces the amount of sound that transfers into open plenum spaces, increasing speech privacy.

select your options

PrivacyShield™ Plenum Return Silencer G2

$325.00$483.33

Time to Ship: 3-5 Business Days
Clear selection
SKU: BARPVSPRSG2

ask a question

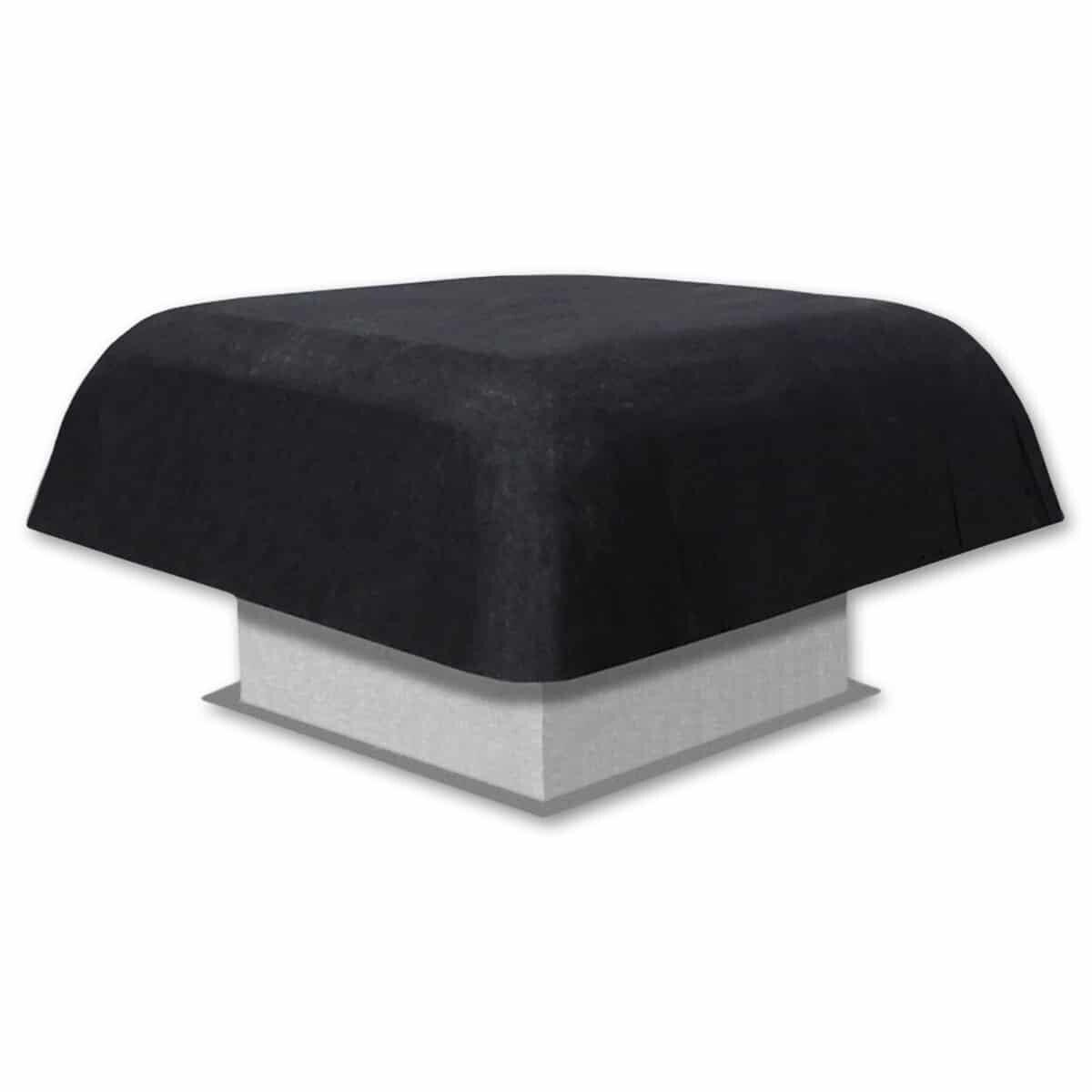

PrivacyShield™ Plenum Return Silencer G2 Standard Hood is the best option for reducing speech transmission. (STC 5)PrivacyShield™ Plenum Return Silencer G2 Septum Hood is the best option to reduce higher volumes of sound like music or machinery noise. (STC 26)PrivacyShield™ Plenum Return Silencer G2, when placed over an existing air return grill, reduces the amount of sound that transfers into open plenum spaces, increasing speech privacy.The PrivacyShield Plenum Return Silencer design presents a tortured pathway to absorb, block, and prevent sound from passing into the plenum while still maintaining adequate air flow.Shown here, the PrivacyShield™ Plenum Return Silencer G2 Standard Hood is installed next to a Light Hood using the height extenders.

PrivacyShield™ Speech Privacy Without the Noise!Speech Privacy Without the Noise!

The PrivacyShield™ Plenum Return Silencer G2 stops airborne sound transmission through ceiling grid air returns to increase speech privacy. As a component of the PrivacyShield™ system, use this in combination with the PrivacyShield™ Ceiling Tile Barrier and Light Hoods to prevent sound from flanking over interior partition walls. Unlike other speech privacy systems, like sound masking, creating a soundproof ceiling grid provides a better, long-lasting alternative without adding fatiguing noise.

By and large, open plenum ceiling grid systems are intended to provide a low cost air return solution for office spaces and buildings. What is often overlooked is the need for speech privacy and sound control. Given that an open air return permits air to cycle into the plenum, but by the same token, it also allows any sound and conversations to pass with it. This is especially the case when the partition walls do not extend up to the roof deck.  To address this issue, something needs to be placed at the sound source to prevent this sound transmission.

As the next generation of air silencers from Acoustical Solutions, the unit was specifically designed to provide a solution to this problem. As the air and sound enter the silencer, it is presented with a tortured path of sound absorbing material. Consequently, the sound is reduced and prevented from escaping to other rooms, while maintaining air flow.

As a result of soundproofing your grid, you can keep your conversations confidential and prevent annoying distractions that will lead to increased privacy and productivity as well as create a comfortable, relaxing space.

For use in standard 2’x2′ and 2’x4′ grids systems, the PrivacyShield™ Plenum Return Silencer G2 is available for new or retrofit construction projects. Each shipment includes a pre-cut barrier tile backer, a vertical air chute with included 5″ corner extensions, your choice of standard hood or hood with a 1 lb. per sq. ft. barrier septum and tape for assembly.

 Applications:

Speech Privacy and Soundproofing for Private Offices, Conference Rooms, HR Departments, Legal Departments and Medical Facilities. Noise due to roof top units, HVAC and other equipment.

Features:

  • Greatly improves speech privacy while maintaining air flow
  • Installs over existing air vent grill
  • Higher worker productivity & Improved worker morale
  • Reduced threat of corporate espionage
  • Compliance with HIPPA
  • Speech Privacy Without the Noise
Hood Section Core Options:
Standard1 lb Septum
PrivacyShield™ Light Hood StandardPrivacyShield™ Light Hood Septum

Standard STC of 5

(Best for Speech)

1 lb Septum STC of 26

(Best for Music,
Mechanical noise)

Technical Information:

  • Size: 2′ x 2′ (actual overall size: 31″ x 31″)
  • Composition:
    • Hood Section: Fiberglass core covered on both sides with non-woven polyester rayon facing molded into a single piece acoustical hood with optional 1 lb Septum
    • Air Chute Section: Two part, black molded fiberglass board with exterior fire-resistant foil scrim facing
    • Ceiling Tile Barrier: 0.12 inch (3.05 mm) woven polyester acoustic decouple facing adhered to a 0.12 inch (3.05 mm) mass loaded vinyl sound barrier with a 0.003 inch (0.08 mm) fire retardant fabric backing
  • Parts List:  Air Chute with included (4) 5″ high corner extensions, Hood, Ceiling Tile Barrier, Tape
  • Intended Use: To reduce the amount of sound that may passes through an air vent into an out of a ceiling plenum. This product is a component of the PrivacyShield System that includes  PrivacyShield™ Ceiling Tile Barrier and PrivacyShield™ Light Hoods.
  • Maximum air flow: 750 CFM (cubic feet per minute)
  • Operating Temperature per ASTM C411: 250 degrees maximum
  • Air Velocity per ASTM C1071: 5000 fpm (25.4 m/sec) maximum
  • Maximum Internal Pressure per UL 181: 2″ w.c. (498 Pa)
  • Fungi Resistance:
    • per ASTM C1338: Does not breed or promote
    • per ASTM G21: No growth
  • Bacteria resistance per ASTM G22: No growth
  • Water Vapor Transmission per ASTM E96: < 0.02 Perms
  • Water Vapor Solutions per ASTM C1104: <5% by weight
  • Fire Rating: Class 1 or A per ASTM E84 (UL 723)
  • NRC: 1.00 per ASTM C 423-09a/E 795-08/NVLAP 08/P03
  • Sound Transmission Loss (STC) Per ASTM E 90-09/NVLAP 08/P06
    • Hood Standard – STC: 5
    • Hood with 1 lb. Septum – STC: 26
Sound Transmission Loss (Hz) (per ASTM E 90-09)
Type125250500100020004000STC
Standard5445675
1 lb. Septum16172125334026
Sound Absorption (Hz) (per ASTM C423-09a; E-400 Mounting)
125250500100020004000NRC
1.011.070.801.051.021.091.00

Installation Method:

Please refer to the installation instructions posted in the Documents Tab of this web page.

Construct this unit using the provided duct tape and placed in the ceiling grid on top of an existing perforated air return grill. To begin, assemble the two vertical air chute components into a square box, on top of the ceiling tile barrier mat, using the factory installed peel and stick tape. If additional height clearance is necessary to clear an adjacent light hood or other items, tape the four provided 5″ height extensions to the each of the four corners using the provided tape.

Square up the assembled air chute, on top of the pre-cut ceiling tile backer (grey side up) and secure it to the ceiling tile backer with provided duct tape. Pass the completed air chute with barrier tile into the plenum and install on top of the existing perforated air return grill. Finally, pass the hood portion of the unit into the plenum and place on top of the installed air chute.

  • Maintain uniform temperature and humidity prior to, during and after installation.
  • These installation instructions are a general guide to avoid common errors. Installer should follow best practices for construction and workmanship
  • Do not install material of unacceptable quality.
PrivacyShield™ Plenum Return Silencer G2
SKUCoreSizePrice (ea.)
BARPVSPRSG222Standard2′ x 2′$325.00
BARPVSPRSG222S1 lb Septum2′ x 2′$483.33



For more information on our PrivacyShield™ Plenum Return Silencer G2,
call us at 1-800-782-5742 or contact our sales department.

Soundproofing the Ceiling at Tandem's Office

Soundproofing the Ceiling at Tandem's Office

See how the PrivacyShield™ system was installed at the offices of Tandem Mental Health Associates. Ceiling Tile Barrier, Light Hoods and a Door Seal kit were installed to block and prevent sound from passing between three offices.

PrivacyShield™ Light Hood

PrivacyShield™ Light Hood

Speech Privacy Without the Noise!The PrivacyShield™ Light hood is installed over lighting fixtures in a suspended ceiling to reduce sound and noise transmission. Lighting fixtures have been identified as a…

PrivacyShield™ Ceiling Tile Barrier

PrivacyShield™ Ceiling Tile Barrier

Speech Privacy Without the Noise!The PrivacyShield™ Ceiling Tile Barrier is installed over existing ceiling tiles in a suspended ceiling grid to block sound. These mass loaded ceiling tile backers reduce…

Acoustic Door Seal Kit

Acoustic Door Seal Kit

The Acoustic Door Seal Kit includes jamb seals, a threshold seal and an automatic door bottom to acoustically seal a 36" x 84" door. Unsealed gaps and clearances in door…

Tandem Mental Health Associates

Data Sheet

Data Sheet for PrivacyShield Plenum Return Silencer G2

Installation Guide

Installation Guide for PrivacyShield Plenum Return Silencer G2
