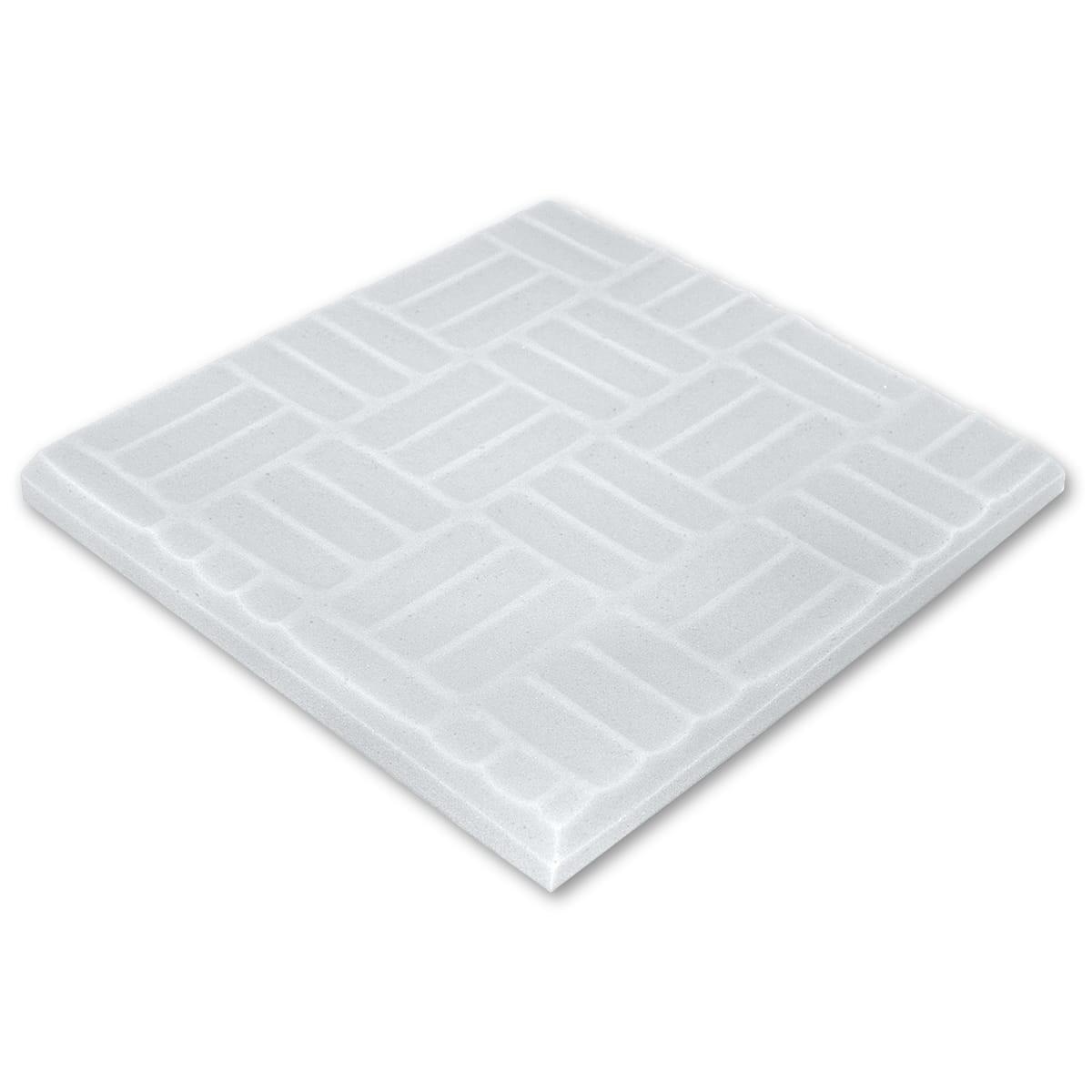

Sonex® Audio Tiles

Rated 4.50 out of 5 based on 2 customer ratings
(3 customer reviews)

$60.00

Manufacturer: Pinta Acoustic
Size: 1' x 1'
Thickness: 1"
Clear
    Reset options
SKU: FOMSONAUD
Pricing ask a question

The Sonex® Audio Tiles are designed for ultimate high frequency noise control for broadcast and recording studios. These foam panels can be glued direct to a wall or ceiling. The unique 12″ x 12″ size of each tile allows for the highest level of design and acoustical performance as you can treat your studio in the exact points of reflection. These versatile, low-profile sound absorbent foam tiles come in both grey and white, with beveled edges and a unique sculpted pattern or flat face finish. In addition to excellent sound absorption, the Sonex® Audio tile is Class 1 fire-rated and 100% fiber-free. Size tolerance for the tiles is +/- 1/8″.

Applications:

For use in offices, call centers, lobbies, entertainment facilities, conference and board rooms, retail stores, lodging and healthcare facilities, recording studios, home theaters, restaurants, event spaces and other applications.

Features:

  • Reduces echo and reverberation
  • Improves speech intelligibility
  • Exceptional acoustical performance
  • Mold-resistant, fire-retardant
  • Unique design potential

Technical Information for Sonex® Audio Tiles:

  • Size: 1′ x 1′
  • Thickness: 1″
  • Material: Open-cell melamine-based foam
  • Pattern: Convoluted, Flat
  • Color: Natural White or Natural Grey
  • Density: 0.5 to 0.7 lbs./cu. ft. (ASTM D3574-77)
  • Fire Rating: Class 1 per ASTM E 84
  • Microbial Growth: Passes UL 181, section 11
  • Fungus Resistance Rating: #0 per ASTM G21
  • Tolerance: +/- 1/8″
  • NRC: 0.50
Sound Absorption (Hz)
125250500100020004000NRC
0.110.170.400.720.790.910.50

Installation Method:

  • These panels can easily be mounted to any wall or ceiling surface with acouSTIC water-based adhesive.
  • Installation is best done at the end of the construction project.
  • Use clean gloves to prevent soiling material.
  • Melamine foam is fragile and should be handled with care.
  • Do not install material of unacceptable quality.

For more information on our Sonex® Audio Tiles,
call us at 800.782.5742 or contact our sales department.
