AlphaSorb® FR701 Sound Baffle

AlphaSorb® Sound Baffle
PremiumBeat Open Office Plan - The fabric wrapped acoustical baffles installed in the ceiling help to lower the reverberation time to increase speech intelligibility.
PremiumBeat Open Office Plan - The black fabric wrapped acoustical baffles are easily hung from the existing truss ceiling.
PremiumBeat Open Office Plan - The black fabric wrapped acoustical baffles are easily hung from the existing truss ceiling.
PremiumBeat Open Office Plan - The fabric wrapped acoustical baffles installed in the ceiling help to lower the reverberation time to increase speech intelligibility.
AlphaSorb® Sound Baffle
Virginia Museum of Contemporary Art - Museum atrium using AlphaSorb hanging baffles in ceiling to reduce ambient noise and reverb.
Clear
    Reset options

    Standard configuration includes 2 grommets.

    • $
    • $
    • 2 $
Request Swatches
SKU: BAFAS
Pricing

Return Policy: This product is non-returnable

Typical Shipping Lead Time: Call for lead times

Data Sheet Data Sheet for AlphaSorb® Sound Baffle
Color Chart Color Chart for Guilford of Maine FR701 Acoustic Fabric
Specifications AlphaSorb® Sound Baffle Specifications
Installation Guide Hanging Sound Baffle Installation Guide
Cleaning Guide Cleaning Instructions for Guilford of Maine Acoustic Fabrics

Product Description

The AlphaSorb® Sound Baffle is the answer to your acoustical and aesthetic needs with their strong sound-absorbing performance, durability and eye pleasing appearance. These acoustical baffle panels are available in a wide variety of sizes, fabrics and colors. They allow you to create an effective acoustical treatment that is distinctly designed for your environment. These hanging baffle products are Class 1 fire rated and offer high sound absorption ratings, NRC 1.05-1.4.

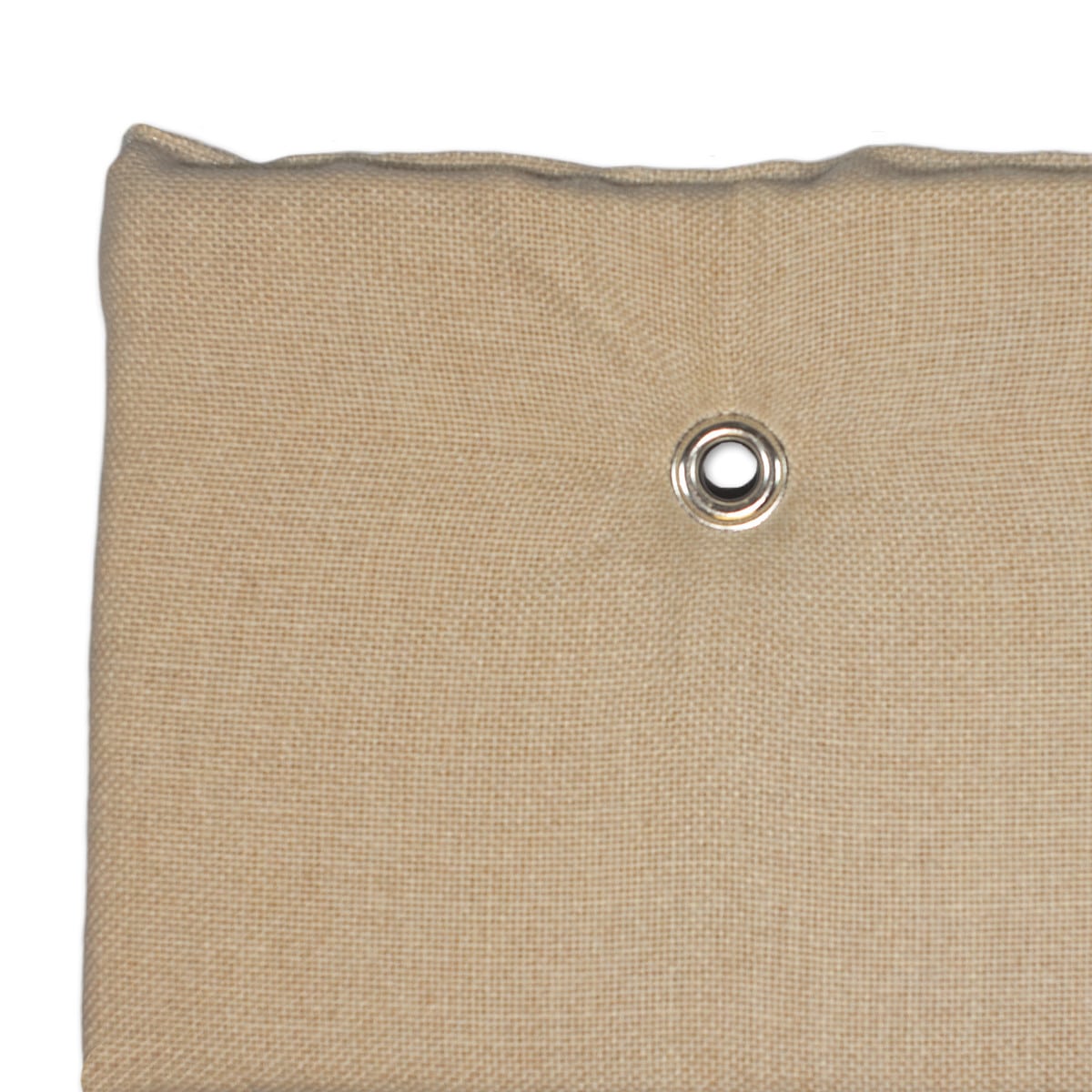

Standard color options are the Guilford of Maine Fabric FR701, style 2100. Other designer fabrics are available upon request. The hanging baffles are constructed with grommets, which allow for a quick and easy installation.

Applications

Arenas, gymnasiums, theaters, restaurants, offices, kennels, manufacturing and more.

Features

  • Reduces echo and reverberation
  • Improves speech intelligibility
  • Exceptional acoustical performance
  • Economical
  • Easy to maintain

Technical Information

  • Size: 4′ x 2′, 2′ x 2′, 4′ x 4′
  • Thickness: 1″ (3 PCF) , and 2″ ( 1.65 PCF)
  • Material: 1.65 PCF and 3 PCF acoustical fiberglass core
  • Intended Use: Interior, sound absorption
  • Finish: Guilford of Maine FR701 2100 Fabric or as specified
  • Suspension Provision: Factory installed Nickel plated Brass Grommets on width edge (Stainless Steel or Black grommets available upon request)
  • Fire Rating: Class 1 or A per ASTM E 84 25/0/50
Sound Absorption (Hz) in Sabins
Type 125 250 500 1000 2000 4000
1″ (3 PCF) 2.50 3.94 6.72 11.52 12.11 8.69
2″ (1.65 PCF) 2.43 5.49 10.64 12.23 8.01 4.74

Installation Method

  • Suspend baffles using coated wire/ties and other fastener as required. (See Installation Guide in Documents)
  • Installation is best done at the end of the construction project
  • Do not install material of unacceptable quality or pre-install suspension hardware (grommet locations may vary slightly)
  • Store material out of direct UV sunlight and maintain at room temperature.

prop 65 warning icon WARNING: This product can expose you to chemicals including formaldehyde and antimony trioxide, and glass wool fibers (inhalable and biopersistent), which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

For more information on our AlphaSorb® FR701 Sound Baffle,
call us at 800.782.5742 or contact our sales department.
