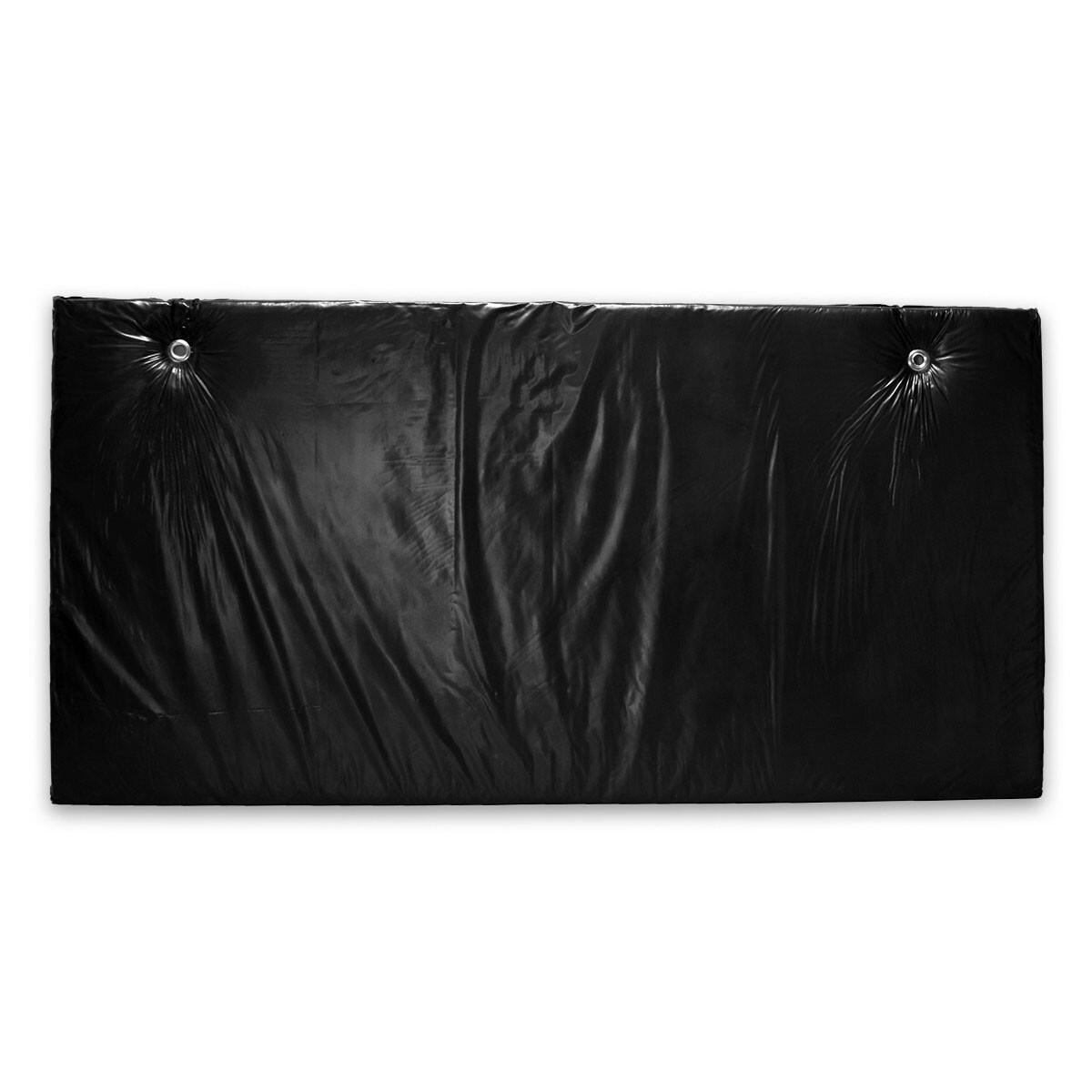

Our AlphaSorb® PVC Plastic Acoustic Sound Baffles are an economical hanging sound-absorbing baffle with a wipeable surface. Suspended vertically, these acoustical baffles are used to reduce and lower excessive reverberation times (RT60) in large open spaces. The baffles work to interrupt the path of the noise and reduce sound reverberation.

Easily install these baffles using simple hardware through the grommets provided on the top width edge. You can suspend these baffles from ceilings, bar joists, cable, and pre-engineered truss systems. They can be arranged in a manner to create dynamic looks or to avoid lighting and HVAC equipment.

Applications

Arenas, gymnasiums, theaters, restaurants, offices, kennels, manufacturing, and more.

Features

• Reduces echo and reverberation
• Improves speech intelligibility
• Exceptional acoustical performance
• Economical
• Easy to maintain

Technical Information for AlphaSorb® PVC Plastic Acoustic Sound Baffles

• Size: 4' x 2', 3' x 2'
• Thickness: 2"
• 1.65 PPC acoustical fiberglass core
• Intended Use: Interior, sound absorption
• Finish: 2-3 mil Heat Sealed PVC (polyvinyl-chloride)
• Suspension Provision: Factory installed Nickel plated Brass Grommets on width edge (Stainless Steel or Black grommets available upon request)
• Fire Rating: Class 1 or A per ASTM E84 25/0/50
• NRC: 1.00 - 1.15

Sound Absorption (Hz)
Sabins per Baffle per ASTM C423-90a

Installation Method

• Suspend baffles using coated wire/ties and other fastener as required (See Installation Guide in Documents.)
• For best results, install this product at the end of your construction project.
• Do not install material of unacceptable quality or pre-install suspension hardware (grommet locations may vary slightly.)
• Store material out of direct UV sunlight and maintain at room temperature.
