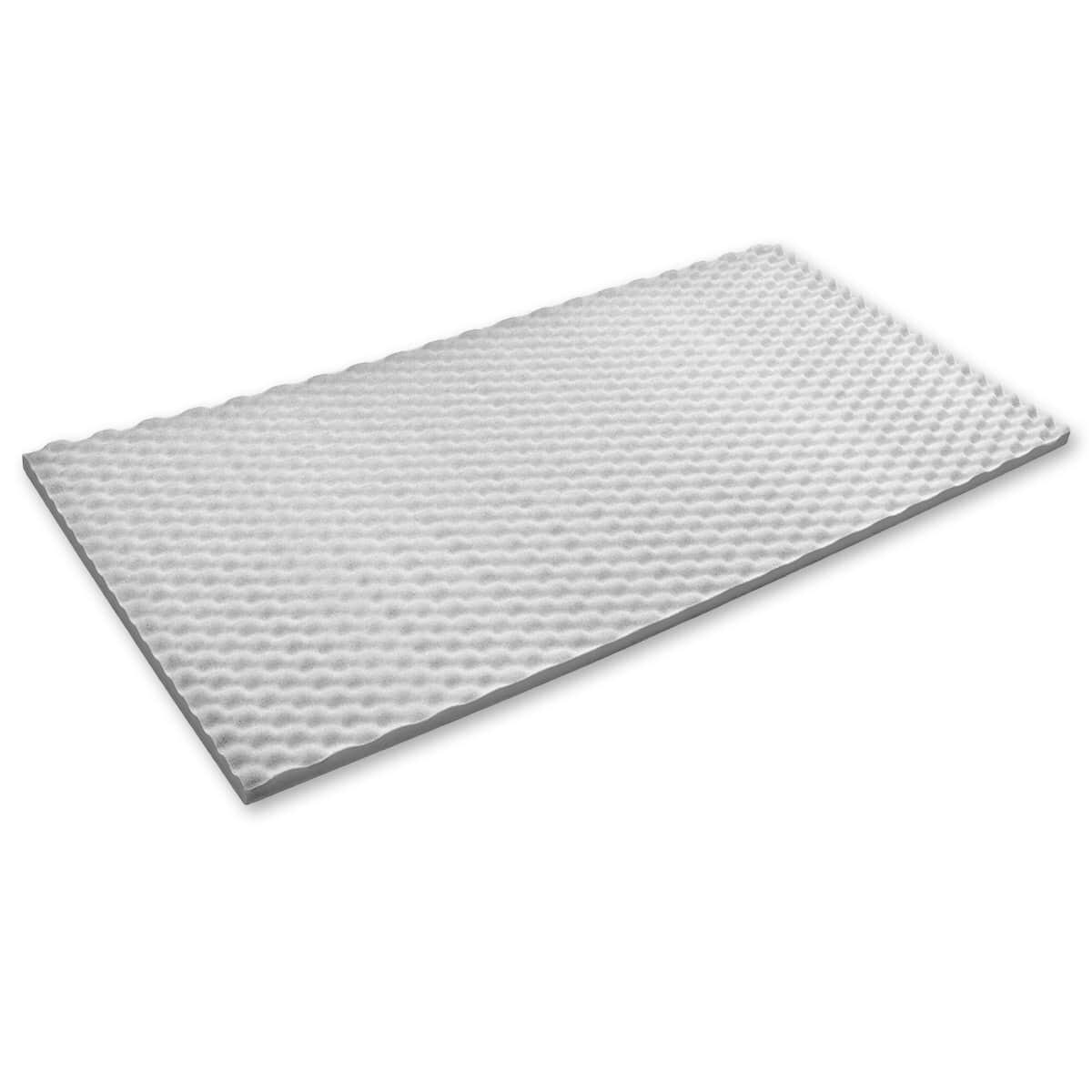

AlphaWedge® Foam
Sold By: Box
Box Qty: 3, 5, 8, 12, 18
Size: 2' x 4'
Box Qty: 3, 5, 8, 12, 18
Size: 2' x 4'
Typical Shipping Lead Time: 2-3 weeks
Documents
Videos
Accessories
Room Acoustical Analysis
Data Sheet
Data Sheet for AlphaWedge® Acoustic Foam
CAD Drawings
CAD Drawings for AlphaWedge® Acoustic Foam
Installation Guide
Acoustic Foam Panel Installation Guide
Cleaning Guide
Acoustic Foam Panel Cleaning Guide
Product Description
AlphaWedge® Foam is a cost-effective, high-performing sound absorption foam panel that provides strong noise reduction over a wide range of frequencies. AlphaWedge® Acoustic Foam is available 2′ x 4′ sheets and thickness of 1″, 1-1/2″, 2″, 3″ and 4″.
AlphaWedge® Foam is Class 1 fire-rated, comes in grey and white colors, and is easily installed with a water-based panel adhesive.
Applications
- Broadcast and Recording Studios
- Offices and Conference Rooms
- Distance Learning
- Industrial
- Manufacturing
Features
- Reduces echo and reverberation
- Improves speech intelligibility
- Exceptional acoustical performance
- Mold-resistant, fire-retardant
Technical Information for AlphaWedge® Acoustical Foam
- Size: 2′ x 4′
- Thickness: 1″, 1-1/2″, 2″, 3″, 4″
- Material: Open-cell melamine-based foam
- Pattern: Anechoic Wedge
- Intended Use: Interior, sound absorption
- Finish: Grey, White
- Density: 0.7 lbs./cu. ft.
- Fire Rating: Class 1 or A per ASTM E84
- NRC: (2″) 0.80, (3″) 1.100, (4″) 1.20
| Sound Absorption (Hz) per ASTM C423-90a | |||||||
| Thickness | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 1″ | n/a | n/a | n/a | n/a | n/a | n/a | n/a |
| 1-1/2″ | n/a | n/a | n/a | n/a | n/a | n/a | n/a |
| 2″ | 0.03 | 0.31 | 0.81 | 1.02 | 1.01 | 0.96 | 0.80 |
| 3″ | 0.13 | 0.74 | 1.26 | 1.18 | 1.12 | 1.03 | 1.10 |
| 4″ | 0.32 | 1.03 | 1.28 | 1.25 | 1.17 | 1.14 | 1.20 |
Installation Method
- These panels can easily be mounted to any wall or ceiling surface with water-based construction adhesive.
- Installation is best done at the end of the construction project.
- Use clean gloves to prevent soiling material.
- Melamine foam is fragile and should be handled with care.
- Maintain uniform temperature of minimum 60° F and maximum humidity of 40% prior to, during and after installation.
- Do not install material of unacceptable quality.
PLEASE NOTE: Half of the panels per box have a positive pattern and half have a negative pattern, as the panels are meant to be installed alternating the patterns. Please layout your design and make necessary design changes prior to installation.
