Acousti-Mat® Tape Dispenser
Acousti-Mat® Tape Dispenser allows for easy application of the Acousti-Mat® Tape to seal seams and adhere Acousti-Mat® Isolation Strips to the Acousti-Mat® Floor underlayment. The dispenser is used to seamlessly…
Acousti-Mat® Tape is for taping the seams of and securing Acousti-Mat® Perimeter Isolation Strips to the Acousti-Mat® Floor Underlayment. Acousti-Mat® Tape is heavy duty grade with a 50 micron, biaxially…
OSI® SC-175 Acoustical Caulk
OSI® SC-175 Acoustical caulk is used to seals seams and gaps in an array of construction assemblies in order to prevent sound leakage. If air can pass through an assembly,…
Acousti-Mat® Floor Underlayment

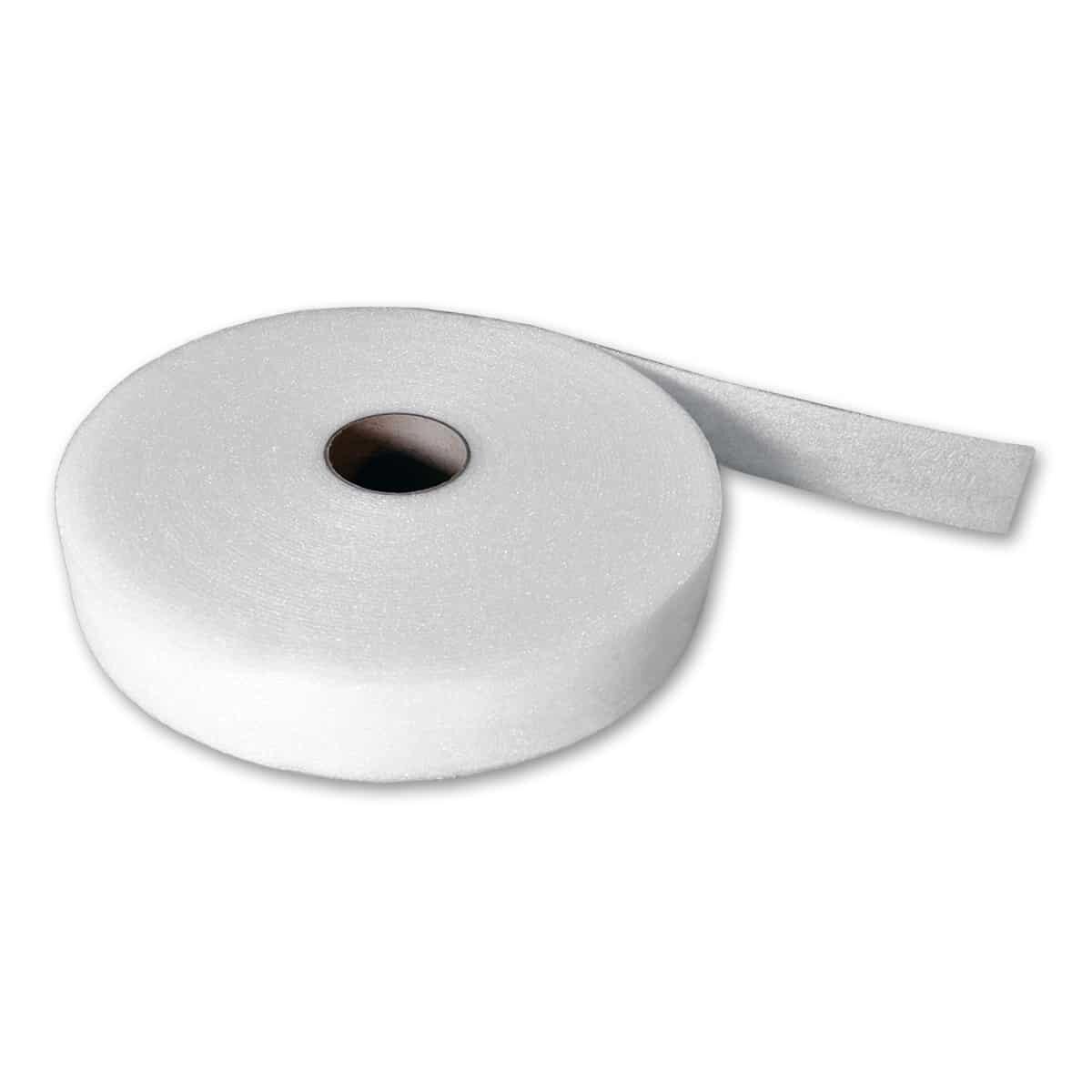

The Acousti-Mat® Perimeter Isolation Strip is as an edge border used with Acousti-Mat® Floor Underlayment in order to prevent structural sound transmission to side walls. The product is extremely flexible, lightweight, easy to install and handle. The material is sold by the roll, 2.5″ wide x 110′ in length and 1/8″ thick. The Perimeter Isolation Strip is packaged on a roll for long placement runs and limited cutting.
The Acousti-Mat® Perimeter Isolation Strip should be installed at the perimeter of all areas receiving the Acousti-Mat® Floor Underlayment. It should also go around any protrusions in the flooring. This procedure isolates the sound mat floor system from other material. This isolation creates an acoustical break that minimizes the transmission of sound laterally from the “floating floor” to any other construction assembly. Adhere the foam perimeter isolation strip to the wall or staple as close as possible to the top of the foam strip, above the height of the poured floor.
Install Acousti-Mat® Perimeter Isolation Strip at the perimeter of all areas receiving Acousti-Mat®, including door frames and around any protrusions. This procedure isolates the sound mat floor system from the walls in order to create an acoustical break that will minimize the transmission of sound laterally from the ‘floating floor’ to the walls. Adhere the foam perimeter isolation strip to the wall or staple as close as possible to the top of the foam strip, above the height of the poured floor.
