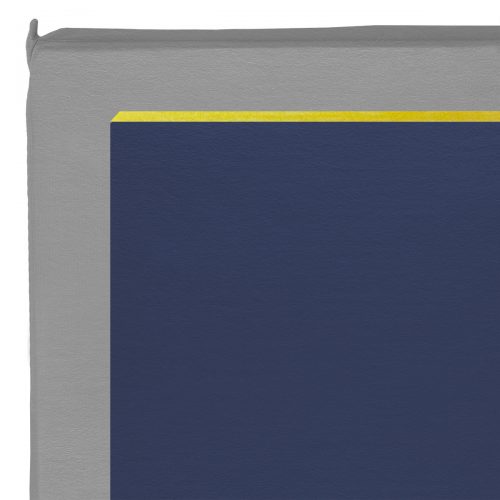

AlphaEnviro® PVC Acoustic Ceiling Tile

The AlphaEnviro® PVC Ceiling Tile offers economical sound absorption with a wipe able face or can be completely encapsulated for high humidity environments. These ceiling tiles utilize a fiberglass substrate faced or encapsulated with PVC. These PVC ceiling tiles offer high sound absorption ratings, NRC .80 – 1.15.

The AlphaEnviro® Ceiling Tiles come in standard sizes of 2′ x 2′ and 2′ x 4′ and standard thicknesses of 1″ and 2″. They easily install into any standard suspended ceiling grid system. Custom sizes are available.

Technical Information for AlphaEnviro® PVC Acoustic Ceiling Tile:

  • Size: 2′ x 2′, 2′ x 4′
  • Thickness: 1″, 2″
  • Material: 6 lb. acoustical fiberglass core
  • Finish: 2-3 mil PVC (polyvinyl-chloride)
  • Colors: See PVC color chart in documents tab
  • Edges: Natural / Square
  • Intended Use: Sound absorbing wall panels for interior spaces to reduce echo and reverberation
  • Mounting: Drop into existing T-bar suspended grid
  • Fire Rating: Class 1 or A per ASTM E 84 25/0/50
  • NRC: 0.85 – 1.15

For more information on our AlphaEnviro® PVC Acoustic Ceiling Tile,
call us at 800.782.5742 or contact our sales department.
