PrivacyShield® 12x12 Room Kit

$1,210.21$1,229.41

Clear
SKU: BARPVSKIT
ask a question

Speech Privacy Without the Noise!

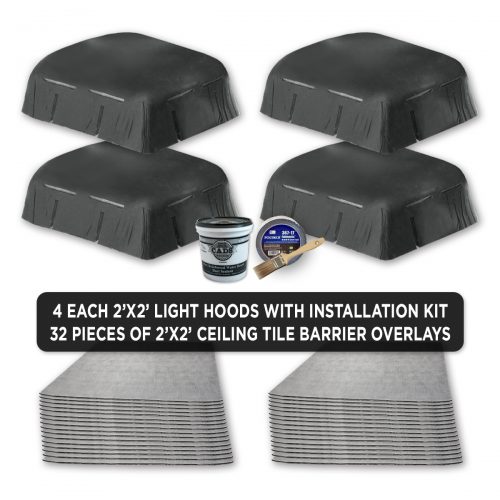

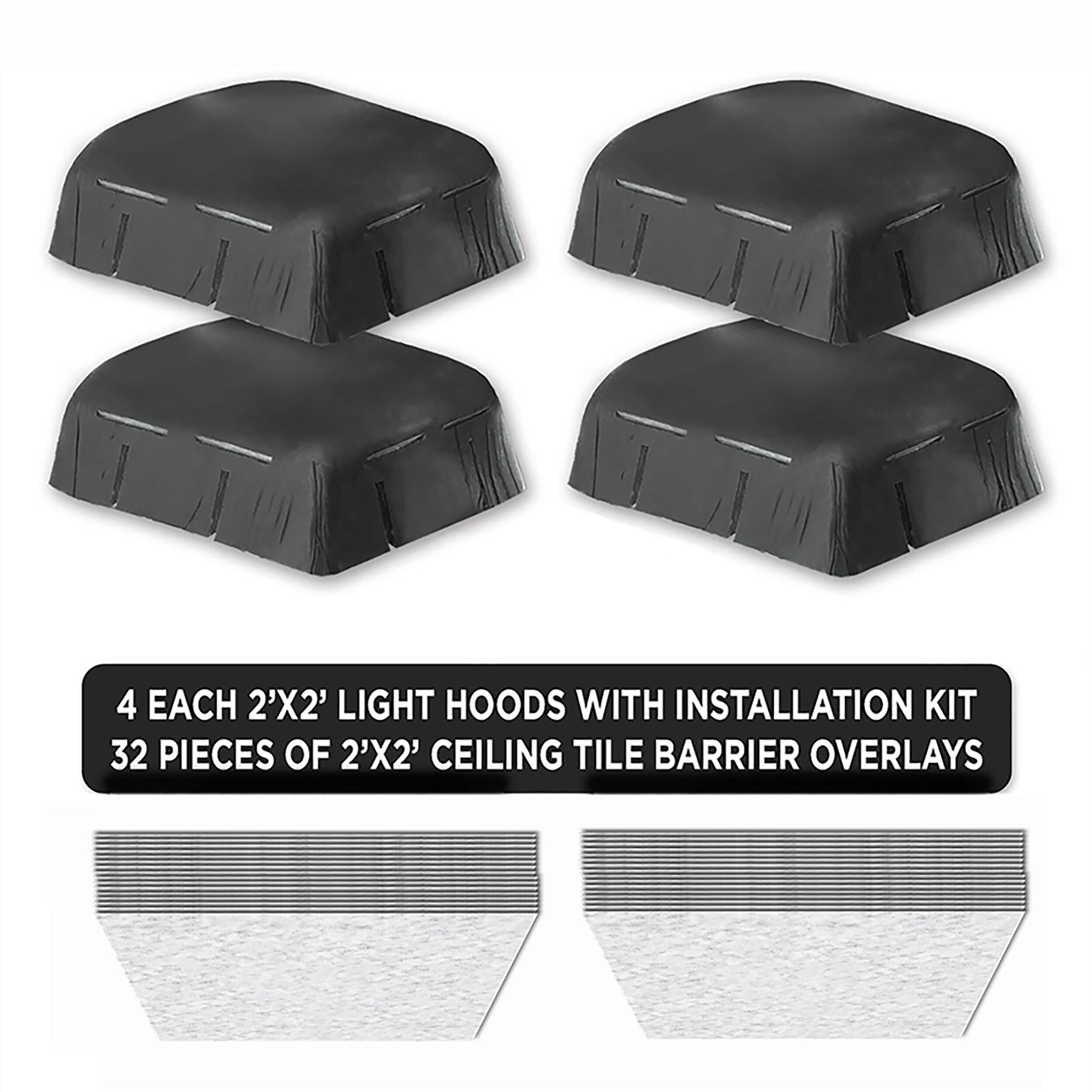

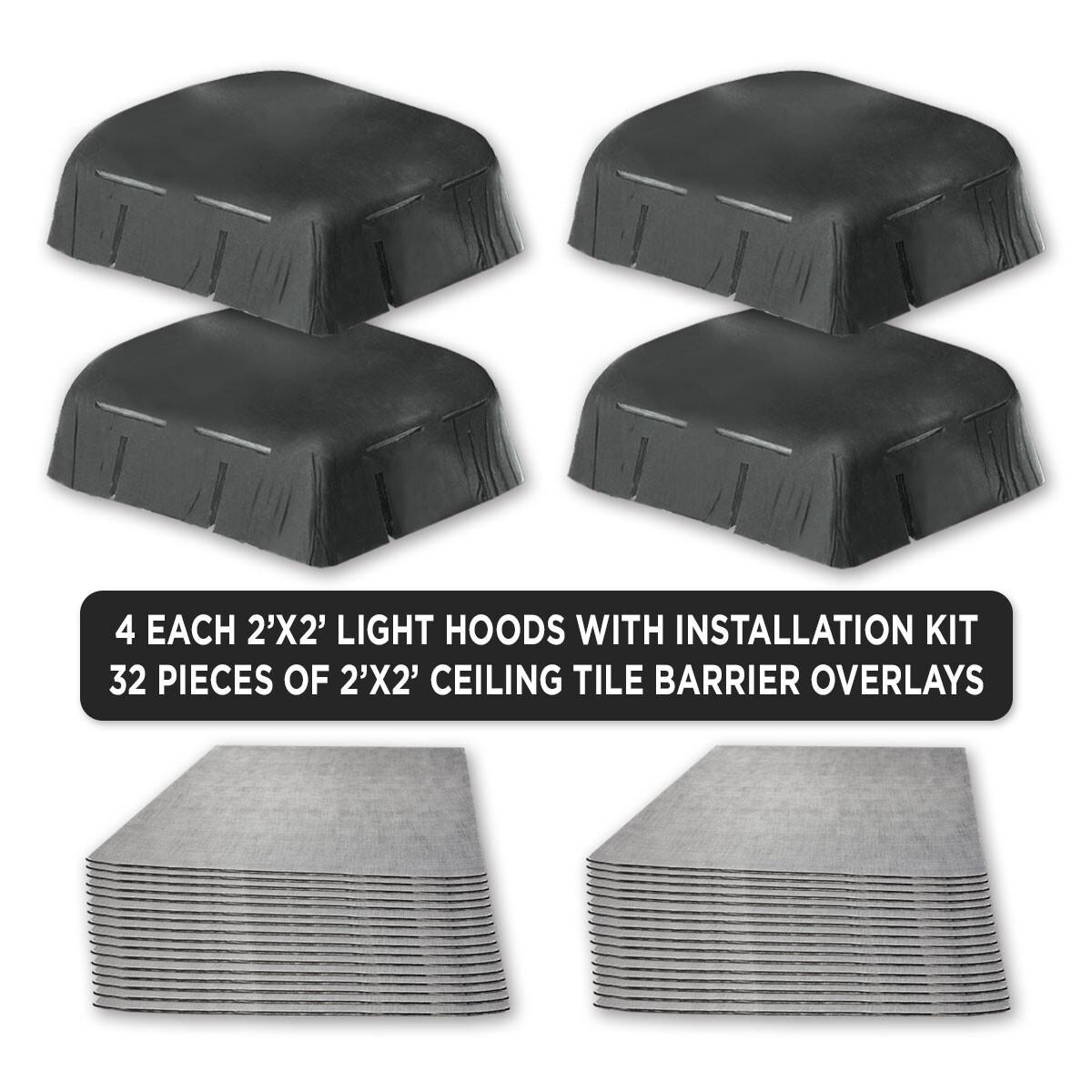

PrivacyShield™ Speech Privacy Without the Noise!Our PrivacyShield® 12×12 Room Kit is designed to provide the appropriate material to block the transmission of speech through a ceiling grid for a 12’x12′ room. This kit contains 2′ x 2′ or 2′ x ‘4 ceiling tile barriers to lay on top of existing ceiling tiles and standard 2′ x 2′ or 2′ x 4’ light hoods. All necessary installation accessories are included (mastic, tape, and brush for light assembly of light hoods).

If sound does not pass through the walls of the existing space, the next likely culprit is the ceiling grid.  Most office partition walls do not extend to the roof deck, which allows sound to transmit into the plenum and flank over to the adjacent space. Place PrivacyShield® Ceiling Tile Barriers on the back of existing ceiling tiles to add mass and block sound. Place PrivacyShield® Light Hoods over the lights in the plenum space to prevent sound leakage while still allowing for appropriate airflow.

PrivacyShield™ Noise Insulation Class (NIC)

UNTREATED VS. TREATED

Technical Information for PrivacyShield® Light Hood:

  • Size: 2′ x 2′ (actual: 31″ x 31″ x 9″) or 2′ x 4′ (actual: 31″ x 55″ x 9″)
  • Thickness: 1″
  • Height: 9″
  • Color: Black
  • Composition: Fiberglass core covered on both sides with non-woven polyester rayon facing molded into a single piece acoustical hood with standard core
  • Fire Rating: Class A per ASTM E84 (UL 723)
  • Complies with Uniform Building Code (BOCA), Standard Building Code (SBCCI), and International Building Code (ICC).
  • Meets or exceeds the National Electric Code pertaining to the installation of this system over lighting fixtures.
  • NRC: 1.00 per ASTM C 423-09a/E 795-08/NVLAP 08/P03
  • Sound Transmission Loss (STC) Per ASTM E 90-09/NVLAP 08/P06
    • PrivacyShield® Light Hood Standard – STC: 5

Technical Information for PrivacyShield® Ceiling Tile Barrier:

  • Size: 2′ x 2′ (23-3/4″ x 23-3/4″) or 2′ x 4′ (24-3/4″ x 47-3/4″)
  • Composition: 0.12 inch (3.05 mm) woven polyester acoustic decouple facing adhered to a 0.12 inch (3.05 mm) mass loaded vinyl sound barrier with a 0.003 inch (0.08 mm) fire retardant fabric backing
  • Weight: 1.1 pounds per a square foot
  • Fire Rating: Class A per ASTM E84 (UL 723)
    • Complies with ISO/IEC Standards 17025, 17020, and Guide 65 (17065).
  • Sound Transmission Loss (STC) Per ASTM E 90-09/E413-10
    • STC: 27

Installation Method:

Install PrivacyShield® Ceiling Tile Barrier on top of the existing ceiling tiles throughout the entire room. Ensure the ceiling tile backers are a tight fit into the grid. PrivacyShield® Light Hoods assemble as outlined in installation guide using the included installation kit (bonding paste, tape & brush). PrivacyShield™ System

For more information on our PrivacyShield® 12x12 Room Kit,
call us at 800.782.5742 or contact our sales department.
