3 reviews for PrivacyShield® Light Hood
Data Sheet for PrivacyShield® Light Hood
Installation Guide For PrivacyShield® Light Hood
Soundproofing the Ceiling at Tandem's Office
See how the PrivacyShield™ system was installed at the offices of Tandem Mental Health Associates. Ceiling Tile Barrier, Light Hoods and a Door Seal kit were installed to block and prevent sound from passing between three offices
- Can I install PrivacyShield® Light Hood over a High Hat light fixture?
- I am concerned about the heat buildup in the light fixture if I cover it with the Privacy Shield® Light Hood.
- What is the downside of laying fiberglass batts above the ceiling tiles?
- Does the light hood sit on the light?
- Does the light hood affect the fire rating of the ceiling?
- Do we need to use the mastic and tape?
- Can I install in an office area that has sound masking?
We specify our 2’ x 2’ PrivacyShield® Light Hood for this application.
This is an important point to review: PrivacyShield® was designed from the start to ensure more than adequate ventilation so that the dissipation of heat from the light fixture was not impacted.
It is against building code to lay fiberglass directly onto or against light fixtures.
No, the light hood does not sit on the light, it sits on the ceiling grid and ceiling tiles. The light hood provides for a vented 2” air space around the light fixture.
No, a Class A Fire Rated ceiling will remain a Class A fire rated ceiling.
Mastic is what holds the light hood hold in place when tiles are put in place or removed.
Yes
Major Northeastern University
Tandem Mental Health Associates
Ortho Biotech
PrivacyShield® Ceiling Tile Barrier
Speech Privacy Without the Noise! The PrivacyShield® Ceiling Tile Barrier is installed over existing ceiling tiles in a suspended ceiling grid to block sound. These mass loaded ceiling tile backers…
Acoustic Door Seal Kit
Our Acoustic Door Seal Kit includes jamb seals, a threshold seal and an automatic door bottom to acoustically seal a 36" x 84" door. Unsealed gaps and clearances in door…
PrivacyShield® Plenum Return Silencer G2
Speech Privacy Without the Noise! The PrivacyShield® Plenum Return Silencer G2 stops airborne sound transmission through ceiling grid air returns to increase speech privacy. As a component of the PrivacyShield®…
PrivacyShield® 12x12 Room Kit
PrivacyShield® Ceiling Tile Barrier
PrivacyShield® Plenum Return Silencer G2

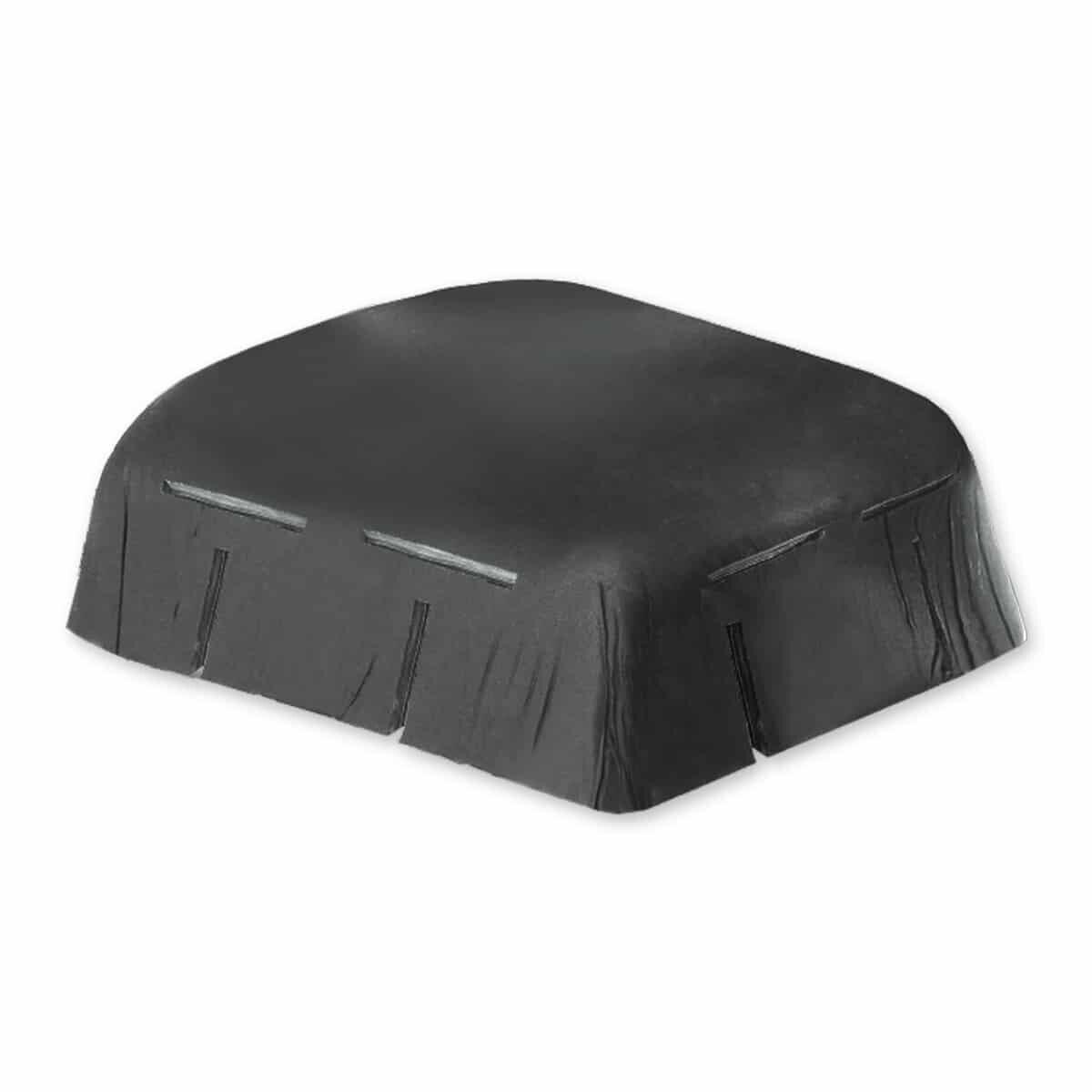

PrivacyShield® Light Hood
Speech Privacy Without the Noise!
The PrivacyShield® Light hood is installed over lighting fixtures in a suspended ceiling to reduce sound and noise transmission, while maintaining air flow. Lighting fixtures have been identified as a significant path for speech and noise to enter and exit the ceiling plenum and travel to neighboring enclosed or open rooms.
Light hoods can be installed in both new and existing spaces to reduce the amount of sound transmitted from one space to the next. These are used when wall partitions do not extend up above the ceiling grid to the roof deck and offer an economical alternative to building full partition walls.
Applications:
Speech Privacy and Noise Reduction in Private Offices, Conference Rooms, HR Departments, Legal Departments and Medical Facilities.
Features:
- Greatly improves speech privacy while maintaining air flow
- Higher worker productivity
- Improved worker morale
- Reduced threat of corporate espionage
- Compliance with HIPPA
- Speech Privacy Without the Noise
| Light Hood Core Options: | |
| Standard | 1 lb. Septum |
 |  |
Standard STC of 5 (Best for Speech) | 1 lb. Septum STC of 26 (Best for Music, |
Technical Information:
- Sizes: 2′ x 2′ (actual: 31″ x 31″ x 9″), 2′ x 4′ (actual: 31″ x 55″ x 9″)
- Thickness: 1″
- Height: 9″
- Color: Black
- Composition: Fiberglass core covered on both sides with non-woven polyester rayon facing molded into a single piece acoustical hood with optional 1 lb. Septum
- Fire Rating: Class A per ASTM E84 (UL 723)
- Complies with Uniform Building Code (BOCA), Standard Building Code (SBCCI), and International Building Code (ICC).
- Meets or exceeds the National Electric Code pertaining to the installation of this system over lighting fixtures.
- NRC: 1.00 per ASTM C 423-09a/E 795-08/NVLAP 08/P03
- Sound Transmission Loss (STC) Per ASTM E 90-09/NVLAP 08/P06
- PrivacyShield® Light Hood Standard – STC: 5
- PrivacyShield® Light Hood with 1 lb. Septum – STC: 26
| Sound Transmission Loss (Hz) (per ASTM E 90-09) | |||||||
| Type | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
| Standard | 5 | 4 | 4 | 5 | 6 | 7 | 5 |
| 1 lb. Septum | 16 | 17 | 21 | 25 | 33 | 40 | 26 |
| Sound Absorption (Hz) (per ASTM C423-09a; E-400 Mounting) | ||||||
| 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 1.01 | 1.07 | 0.80 | 1.05 | 1.02 | 1.09 | 1.00 |
Installation Method:
Assemble components as outlined in installation guide using the included installation kit (bonding paste, tape & brush).
Verified Customer –
product was used in a lab. install was and the product was excellent.
We may use it in additional rooms.
Verified Customer –
I am in an office surrounded by smaller offices and had zero privacy as sound carries so easily. Installation of this products transformed my sound, now my staff thinks I am out of the office when I am having phone conferences and employee meetings.
Verified Customer –
Not sure you can improve on the product but I wish there was an easier way to marry the pieces rather than liquid brush on adhesive.
