RT 60 Calculator

  • Enter your room dimensions (LxWxH in ft.) and select your product options to calculate the material required to reduce the reverberation time to your desired value.
    • 0.5 Seconds: Critical Listening Environments (Production & Broadcast Studios)
    • 1 Second: Speech Comprehension & Music Clarity (Classrooms, Conference Rooms, Music Rehearsal, Restaurants, Home Theaters)
    • 1.5 Seconds: General Speech & Music Intelligibility (Multipurpose Rooms, Houses of Worship, Small Auditoriums and Theaters)
    • 2 Seconds: Satisfactory Reverberation (Gymnasiums, Aquatic Centers, Large Auditoriums and Theaters, Exhibit Halls)

Signature Acoustic Ceiling Tile

(1 customer review)
SKU: TILSIG
Pricing

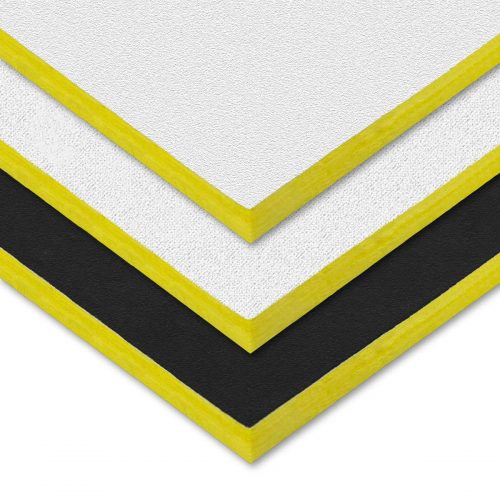

A Signature Acoustic Ceiling Tile is an excellent solution for lowering reverberation (echo) levels in rooms. The acoustical tile consists of a 1″ thick, 6 pound density fiberglass board covered with your choice of four facings; white pebble grain vinyl, white nubby cloth, or black felt. These fiberglass ceilings tiles are an excellent sound absorber with a NRC rating of 0.85 and are Class 1 fire-rated. The Signature acoustic tiles come in standard sizes of 2′ x 2′ and 2′ x 4′ and standard thickness of 1″.

Features:

  • Improve acoustics
  • Three facing options
  • Easy installation

Technical Information:

  • Sizes: 2’x2′, 2’x4′ (Actual Sizes: 23-3/4″ x 23-3/4″, 23-3/4″ x 47-3/4″)
  • Thickness: 1″
  • Construction: 6 pound per cubic foot fiberglass substrate with cloth facing
  • Finish: White Pebble Grain Vinyl, White Nubby Cloth, Black Felt
  • Color: White, Black
  • Weight: 0.6 lbs. per square foot
  • Fire Rating: Class 1 or A per ASTM E84
  • NRC: 0.85
Sound Absorption (Hz) per ASTM C423
125250500100020004000NRC
0.140.270.801.111.141.140.85

 Installation Method:

  • Install tile into existing suspended ceiling grid
  • Installation is best done at the end of the construction project
  • Use clean gloves during installation
  • Maintain uniform temperature prior to, during and after installation

For more information on our Signature Acoustic Ceiling Tile,
call us at 800.782.5742 or contact our sales department.

Customer Reviews

1 review for Signature Acoustic Ceiling Tile

  1. Verified Customer

    I used the tiles to stop an echo in the room, the tiles were high quality and were easy to install.
