Hoover and Strong
The Issue
Hoover and Strong, a manufacturer of recycled precious metals, had an HVAC noise problem. Their clean air blower installed in the work area was creating an organizational hazard. The noise levels were distracting to employees. Acoustical Solutions developed a custom fitted sound enclosure to reduce noise levels by 50%.
The Challenge
Hoover and Strong is a manufacturer of precious metals that has been in business since 1914. One hundred percent of all of their precious metals including gold, platinum, palladium, silver are recycled. Hoover & Strong utilized a recirculating clean air unit which uses a variable speed blower designed to clean the air that is then ducted within their HVAC system. Typically, these units are on roof tops or above ceilings because of the noise levels emitting from the blower. In Hoover and Strong’s case, the unit was within a mechanical room. It was right next to a smelting work area. Their intention was to offer a better, cleaner work environment. To do this, they need to lower the excessive noise levels being created by the clean air unit.
Acoustical Solutions scoped out the job site and saw three initial problems:
- The unit was hangs from a threaded rod. There was no isolation or vibration hangers separating the unit itself to the ceiling deck above.
- The blower on the unit is excessively loud and needs a blanket enclosure to block it off from the mechanical room.
- The Isolation Hangers that Acoustical Solutions chose, use both neoprene for stopping high frequency vibrations and a spring mount. This works well with the low frequency problems.
The Solution
Acoustical Solutions chose the PrivacyShield® ABSC-25 Barrier Septum Soundproofing Blankets for this application because they are a class 1 fire rated blanket suitable for indoor use. They not only absorb sound energy, but block transmission as well.
Knowing that the blower on the unit is set within a close proximity to a work area, Acoustical Solutions needed to add as much sound blocking as they could to the unit. ABSC-25 Barrier Septum Soundproofing Blankets utilize a two-pound version of mass loaded vinyl sound barrier, sandwiched in between two one-inch layers of fiberglass quilted into a vinyl covering. This version of the product provided optimal sound blocking power, making it the perfect enclosure material.
Installation of the isolation hangers was very straightforward. Acoustical Solutions simply cut the existing threaded rod, breaking the metal to metal connection between the unit and ceiling deck, and inserted the isolation hanger, tying off the threaded rod to the top and bottom of the hanger.
The PrivacyShield® Dual-Sided Absorptive Soundproofing Blankets were a little more challenging. First, there were a number of cut outs for the enclosure. Secondly, the unit needs to be able to draw in air to function properly. Creating a tortured path would allow air, but reduce sound.
The blankets on all four sides of the enclosure went on first, attaching to a concrete header. The cut-outs for duct work were field measured, then cut with a utility knife to the appropriate size; taking care to not make too large a cut which would sacrifice the sound attenuation of the enclosure.
Extra edge binding then wraps around the cut-outs and stapled into place to assure that no loose fiberglass was open to the mechanical room.
Creating a air flow vent baffle still allows for proper air flow at the bottom of the unit. This has acoustic absorption on one side of a barrier layer. It creates a convoluted path that will freely allow the air to pass, but will absorb the sound energy as it passes through the ninety-degree turn within the vent baffle.

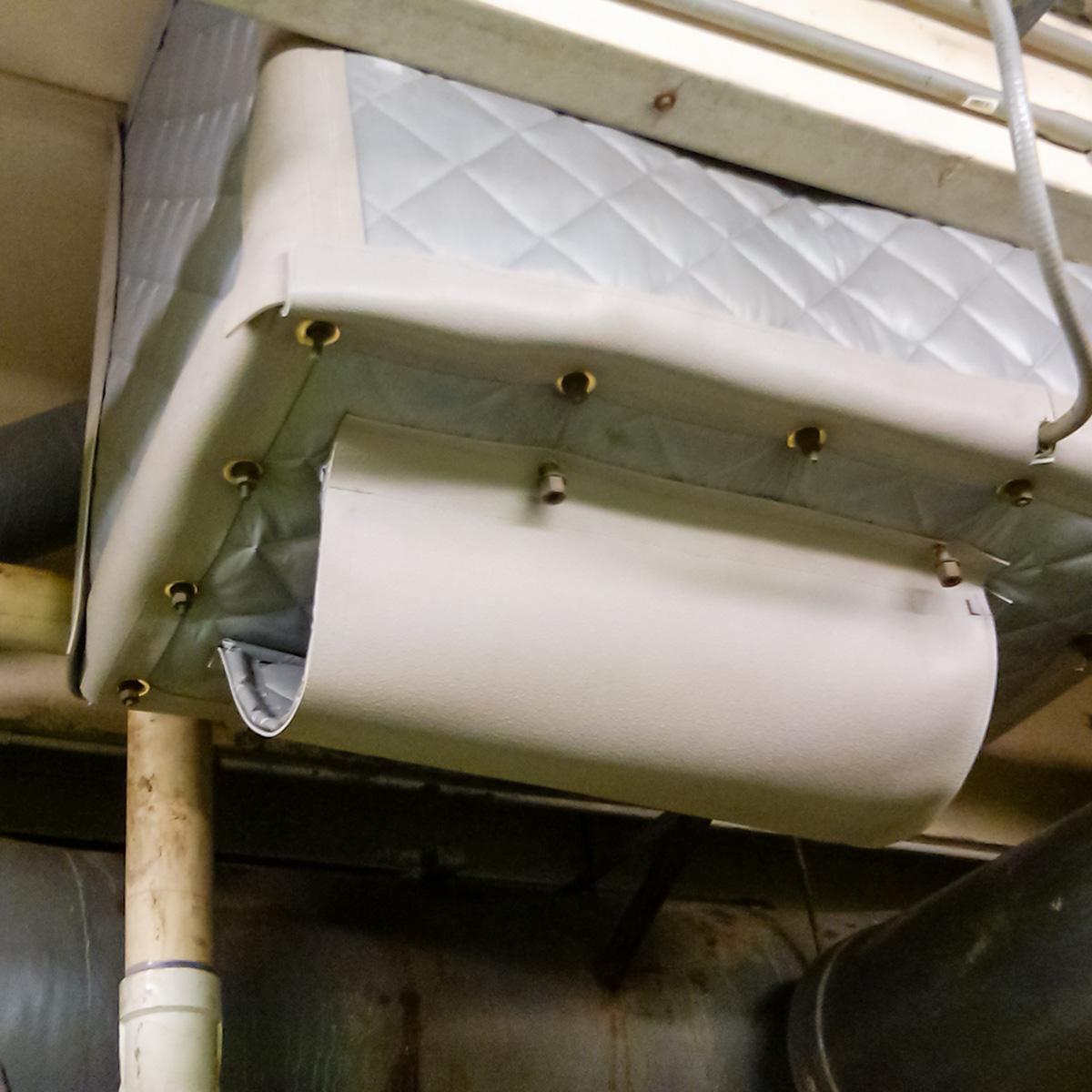

Hoover and Strong—Vented Acoustic enclosure for exhaust fan using acoustic blankets for noise reduction.
The Result
In flipping the switch back on to the unit, the on-site supervisor from Hoover and Strong commented: “The unit is at least 50% percent quieter than it was before!”
