Offset Impaler

Rated 5.00 out of 5 based on 2 customer ratings
(3 customer reviews)

$125.00

Clear
SKU: HAWIMPOFF
ask a question

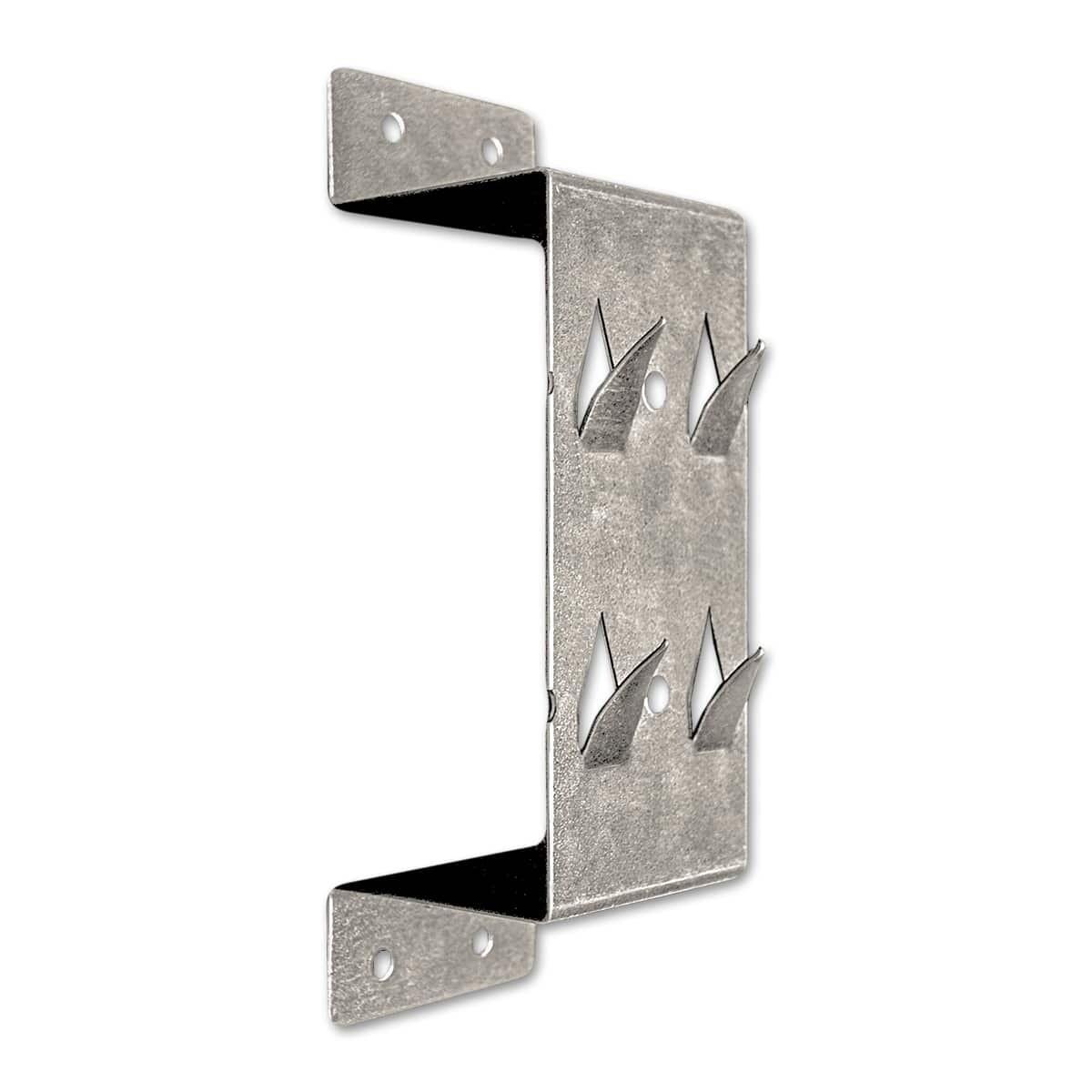

Our offset impaler increases the sound absorption response of an acoustic panel simply and quickly by introducing a 2″ air space. The Impaler features a U-shaped design that elevates the panel from the mounting surface. The Offset Impaler creates a cavity behind the panel that can lower the effective frequency by as much as an octave. The acoustic panels are held in place using a series of sharp protruding darts that penetrate the panel. To secure the panel to the mounting clip, add a dab of adhesive between the impaler face and the back of the acoustic panel.

Features:

  • Easy installation
  • Creates a 2″ air gap to increase panel absorption

Technical Information for Offset Impaler:

  • Size: 6-3/4″ x 2-1/4″ x 2″ depth (nominal)
  • Material: 20 gauge galvanized steel
  • Max load: 12 pounds

For more information on our Offset Impaler,
call us at 800.782.5742 or contact our sales department.
