AlphaSorb® Barrier Acoustic Panels
Return Policy: This product is non-returnable
Typical Shipping Lead Time: 5-6 weeks
Product Description

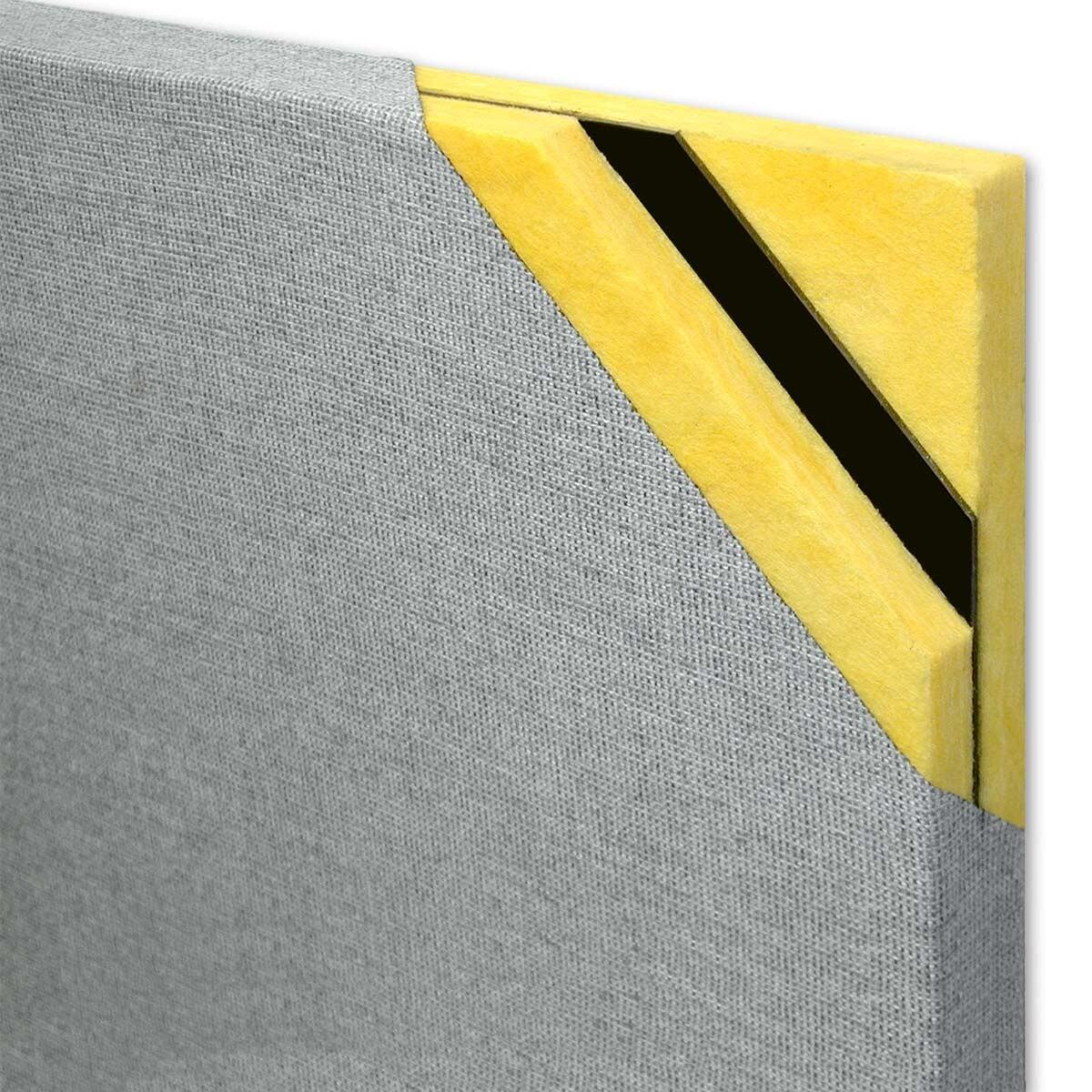

The AlphaSorb® Barrier Fabric Wrapped Wall Panels offer the sound absorption value of standard wall panels combined with the soundproofing capabilities of mass loaded vinyl. This is achieved with the addition of the sound barrier septum between the two layers of fiberglass. These panels are used to improve the acoustics within a room as well as block the transmission of sound to adjacent spaces.
For this product to be effective in blocking sound, the whole wall needs to be covered from floor to ceiling. The AlphaSorb® Barrier Fabric Wrapped Wall Panels allow you to add a sound-blocking material without having to reconstruct your wall assembly. Ideal for applications that require speech privacy or need to block sound.
AlphaSorb® Barrier Panels may be cut to fit on-site or ordered in custom sizes. Also, note that electrical boxes will need to be extended to compensate for the added thickness of the panel. It is recommended that cutouts for electrical boxes and other protrusions be done in the field by a qualified contractor.
Prior to purchasing this product, please be prepared to provide the following information, if requested:
- Pictures of the space
- Wall elevation drawings with dimensions for width and height
- Basic floor plan with dimensions
- Drawings indicating dimensions for obstacles, trim, or protrusions that would affect panel dimensions
- Drawings indicating the width, height, and placement of any doors, windows, and electrical boxes
Features
- Block & absorb sound with one product
- A perfect retro-fit solution
- Reduce reverberation and echo
- Improves speech intelligibility
Technical Information
- Size: up to 4’x10′
- Thickness: 1-1/8″ & 2-1/8″
- Tolerance: +/- 1/8″
- Density: two layers of 6-7 pound per cubic foot acoustical fiberglass substrate with 1/8 thick one-pound barrier septum.
- Intended Use: Interior, sound absorption, sound blocking
- Fire Rating: Class A
- Fabric Finish: Guilford of Maine FR701 Style 2100 (other fabrics available as specified)
- Edge Detail: Options for Square, Bevel, Radius, or Miter Edge
- Edge Construction: Natural or Chemically Hardened (Hardened edges provide additional edge protection and a crisper edge appearance.)
- Mounting options: Impaling clips (adhesive not included)
- NRC: 1-1/8″ (0.65) 2-1/8″ (0.85)
- STC: 1-1/8″ (29) 2-1/8″ (33)
These panels are a custom product that you design yourself.
- Choose your thickness & size
- Select your fabric color
- Choose your edge design
- Call to place your order.
| Sound Absorption (Hz) | |||||||
|---|---|---|---|---|---|---|---|
| Thickness | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 1-1/8″ | 0.12 | 0.14 | 0.71 | 0.77 | 0.71 | 0.58 | 0.65 |
| 2-1/8″ | 0.14 | 0.27 | 0.80 | 1.11 | 1.14 | 1.14 | 0.85 |
| Sound Blocking Performance | |||||||
|---|---|---|---|---|---|---|---|
| Thickness | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
| 1″ | 14 | 17 | 25 | 39 | 44 | 42 | 29 |
| 2″ | 18 | 23 | 27 | 41 | 57 | 60 | 33 |
WARNING: This product can expose you to chemicals including formaldehyde, antimony trioxide and DINP, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Frequently Asked Questions
Contact Us and either call or email us with your request. If you need a quotation, please provide the following information: 1) A list of Quantities & Sizes required 2) Fabric color selection, if known 3) Edge design if other than square. Please also specify if you want them natural or resin hardened (provides edge protection). 4) Mounting Hardware. Impaling clips are included in the price. If using Z-clips, please specify the width and height of the panel. This is important for hardware orientation. 5) Shipping address (Let us know if this is a commercial or residential address)
Samples of the fabric wrapped acoustical panels are available upon request and are free of charge. Contact Us and either call or email us with your request.
Typically, each order is packed on a skid and shipped via LTL (less than truck load) freight truck. If your facility is unable to accept freight shipments, you may wish to consider ordering panels sizes that are 2′ x 4′ or smaller. Depending on the order size, these can often ship by a parcel service like UPS or FedEx. When requesting a quotation for panels, please let us know if the shipping location is commercial or residential and if you will need any special freight services like lift gate or a delivery appointment.
Fabric wrapped acoustical panels are made to order with your choice of fabric, edge design, size and mounting hardware. Typically, lead times can range between 2-4 weeks depending on current manufacturing loads.
Please Contact Us and provide us with your project details. We will need to know the type of application, room dimensions (Length x Width x Height) and some photos of the room.
Yes. We can manufacture custom sizes up to 4′ x 10′. Please contact a sales representative with your specific requirements.
