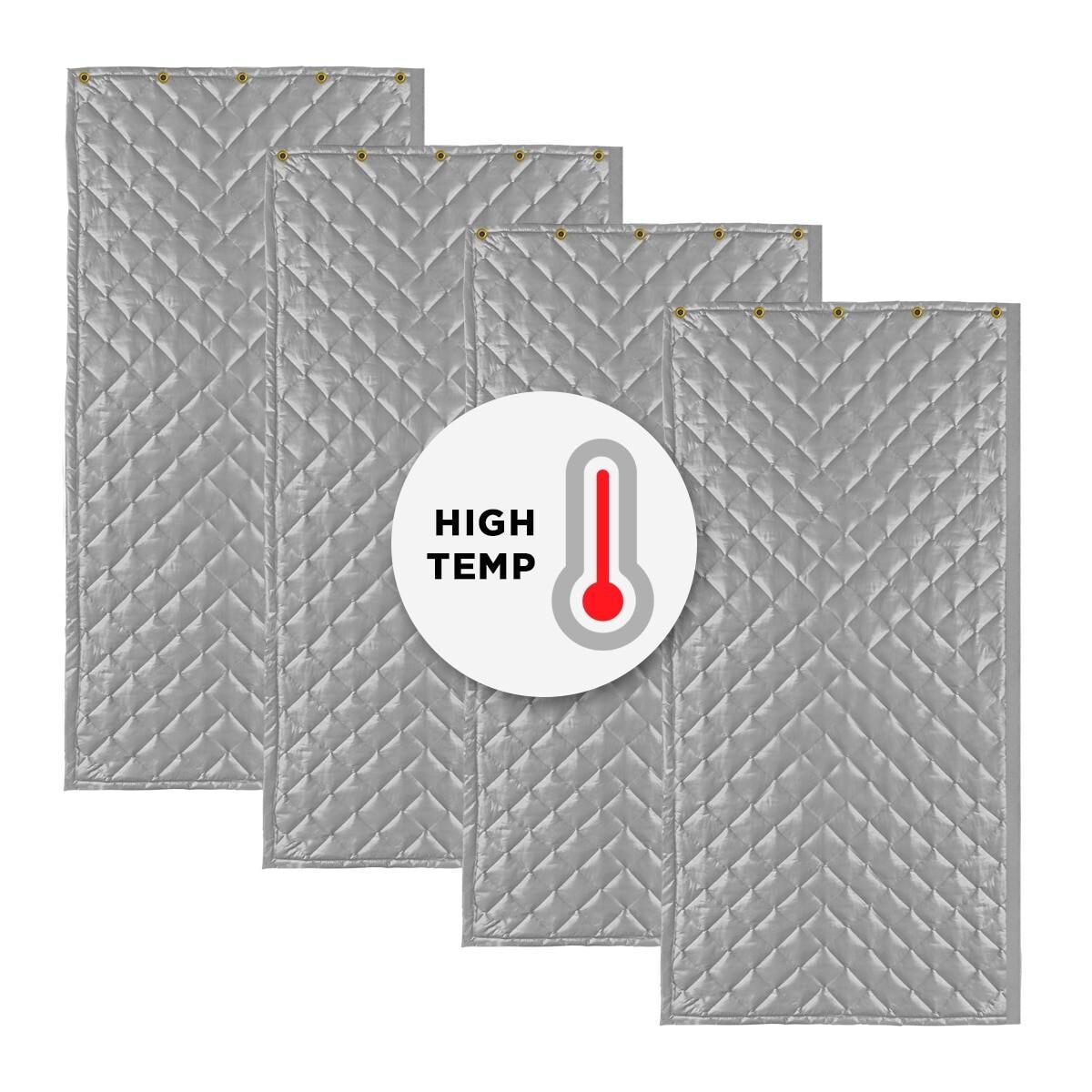

PrivacyShield® ABSC-26 Industrial Barrier Septum Soundproofing Blanket
Product Description
The PrivacyShield® Industrial Dual-Sided Absorptive Soundproofing Blanket, (formerly the ABSC-26 AudioSeal® Combination Sound Blanket) is a barrier septum composite for environments with high temperatures up to 500° F making them well suited for machinery housings and other industrial applications. These silicone-coated soundproof curtains blankets are constructed with a 1 lb. per sq. ft. non-reinforced mass loaded vinyl sound barrier septum that is sandwiched between two layers of 1 in. thick acoustical fiberglass batting that are quilted with a UV-resistant vinyl coated fiberglass cloth facing. This allows PrivacyShield® High Temperature Dual-Sided Absorptive Soundproofing Blanket to supply 360-degree sound absorption and sound attenuation in one efficient product.
These grommeted industrial blankets work like curtain panels. They are constructed with grommets across the top edge and Velcro®® along the vertical edges which make them easy to hang, layer, and install. PrivacyShield® Industrial Absorptive Soundproofing Blankets are commonly used in industrial operations to contain and lower noise from mechanical equipment in high-temperature environments and are impervious to oils, moisture, dust, and most chemicals.
Standard 4′ x 8′ blanket panels may be ordered online. Other sizes up to 4 ft. x 25 ft. are available, please contact us with your specific requirements.
Technical Information ABSC-26 AudioSeal® Combination Sound Blanket
- Size:
- Standard: 48″ (w) x 96″ (h) nominal
- Custom: Up to 48″ x 25′
- Thickness: 2″ (nominal; actual thickness may vary after quilting)
- Color:
- Facing: Grey
- Barrier Back: Grey
- Construction: UV resistant silicone-coated-fiberglass cloth faced quilted fiberglass with one pound per square foot reinforced loaded septum
- Intended Use: Interior High-Temperature, sound absorption, sound blocking
- Weight (lb./sq. ft): 1.5
- Temperature Range: -90 deg. F to 550 deg. F
- Fire Rating: Class 1 or A per ASTM E84
Sound Absorption (Hz) per ASTM C423 |
|||||||
Thickness | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
2″ | 0.07 | 0.27 | 0.96 | 1.13 | 1.08 | 0.99 | 0.85 |
Sound Transmission Loss (Hz) per ASTM E90 & E413 |
|||||||
Thickness | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
2″ | 12 | 16 | 27 | 40 | 44 | 43 | 29 |
WARNING: This product can expose you to chemicals including formaldehyde and DINP, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
