- What is HPC Coating?
- HPC Coating for Wall and Ceiling Panels:
- Coating is applied to the panel face and edges.
- HPC Coating for Hanging Baffles and Clouds:
- The coating will be applied to all exposed edges and sides.
- HPC Coating for Drop-In Ceiling Tiles:
- All necessary edges will be coated to provide a finished appearance.
- Are custom HPC colors available?
- There is a minimum requirement of 700 square feet of Sonex® Acoustical Foam.
- We require the brand name, paint color and number.
- There is a setup fee is for each custom color.
- We require a deposit for the order.
HPC is a high-performance coating that is applied to acoustical melamine foam base. Our exclusive water based HPC formulation improves durability and protects the acoustical foam from dust and dirt, allowing the surface to be cleaned using a damp cloth. The HPC coating is especially appropriate for use high-traffic areas. HPC Premium extends the HPC coating further by offering a line of brilliant colors from which to choose.
Custom HPC colors are available. Popular paint brands may be combined with our exclusive HPC formulation to produce unique designs for any project.
To produce an order for custom HPC colors, please be aware of the following.
Customers with an order for custom HPC colors will receive a sample to approve prior to producing the order.
Sonex® Adhesive Applicator Gun
The Sonex® Adhesive Applicator Gun is a used to apply Sonex® Acoustic Panel Adhesive when installing acoustical foam. This tool operates in a similar fashion to a standard caulking gun.…
Sonex® Acoustic Panel Adhesive
The Sonex® Acoustic Panel Adhesive has been specially formulated for use with our Sonex® acoustic foam panels. One 10.5-ounce tube installs approximately 16-24 square feet of Sonex® acoustic foam wall…
AlphaFlat® Foam
AlphaLinear® Foam
AlphaPyramid® Foam
AlphaSorb® QS Acoustic Panel
AlphaWedge® Foam
PolyPhon™ Polyester Acoustic Panels
Sonex® Classic Foam
Sonex® Valueline Acoustic Foam

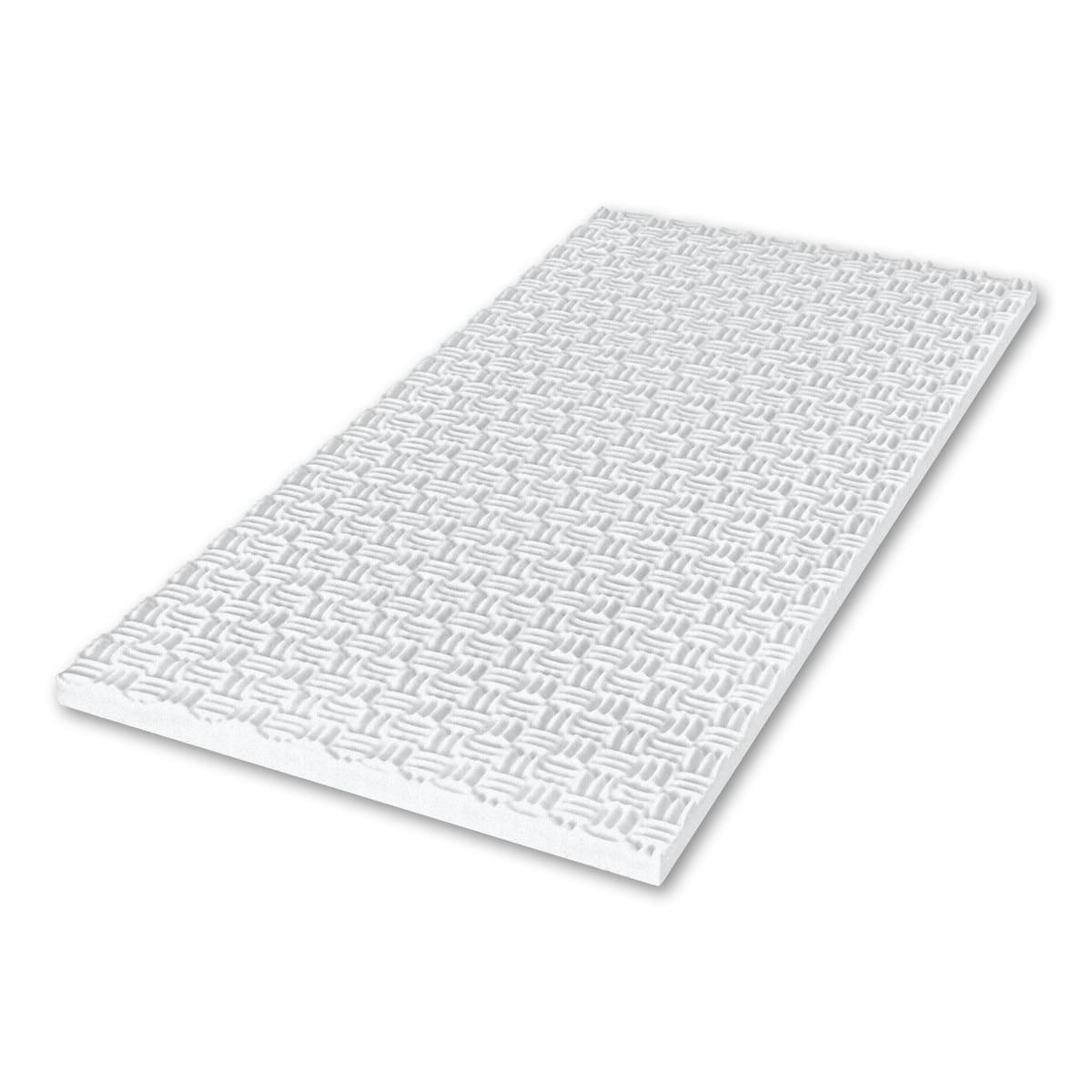

Sonex® Mini Acoustic Foam
Sonex® Mini Acoustic Foam is designed for use in environments where high frequency noise control is required. Its unique sculpted pattern allows for maximum handling of high frequency sound waves. Sonex® Mini Panels are a safety-minded choice for use in machine enclosures and other confined spaces. It can withstand constant temperatures above 300° Fahrenheit, and will char, but not ignite, at temperatures above 1100° Fahrenheit. Sonex® Mini is Class 1 fire-rated and it is 100% fiber-free foam (part #MSO). Sonex® Mini has a minimal depth for use in applications where a thinner acoustic foam is required.
Features:
- Reduces echo and reverberation
- Improves speech intelligibility
- Exceptional acoustical performance
- Smaller convoluted surface pattern
- Mold-resistant, fire-retardant
- Ideal for enclosures or other applications requiring thinner panels
Technical Information For Sonex® Mini:
- Size: 2′ x 4′
- Thickness: 1″, 1.5″
- Part Numbers: MSO-1, MSO-2, MSO-1HW, MSO-2HW, MSC-1, MCS-2
- Material: Open-cell melamine-based foam
- Finish: Natural Grey, Natural White, ColorTec Charcoal, HPC Coated
- Density: 0.5 to 0.7 lbs./cu. ft. (ASTM D3574-77)
- Fire Rating: Class 1 per ASTM E 84
- Microbial Growth: Passes UL 181, section 11
- Fungus Resistance Rating: #0 per ASTM G21
- NRC: 1″ (0.50) 1.5″ (0.65)
| Sound Absorption (Hz) ASTM C423-90a | |||||||
| Thickness | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| 1″ | 0.11 | 0.17 | 0.40 | 0.72 | 0.79 | 0.91 | 0.50 |
| 1-1/2″ | 0.14 | 0.21 | 0.61 | 0.80 | 0.89 | 0.92 | 0.65 |
Installation Method:
- These panels mount easily to any wall or ceiling surface with acouSTIC water-based adhesive.
- Installation is best done at the end of the construction project.
- Use clean gloves to prevent soiling material.
- Melamine foam is fragile, please handle with care.
- Do not install material of unacceptable quality.
