  1. What is HPC Coating?
  2. HPC is a high-performance coating that is applied to acoustical melamine foam base. Our exclusive water based HPC formulation improves durability and protects the acoustical foam from dust and dirt, allowing the surface to be cleaned using a damp cloth. The HPC coating is especially appropriate for use high-traffic areas. HPC Premium extends the HPC coating further by offering a line of brilliant colors from which to choose.

    • HPC Coating for Wall and Ceiling Panels:
      • Coating is applied to the panel face and edges.
    • HPC Coating for Hanging Baffles and Clouds:
      • The coating will be applied to all exposed edges and sides.
    • HPC Coating for Drop-In Ceiling Tiles:
      • All necessary edges will be coated to provide a finished appearance.
  3. Are custom HPC colors available?
  4. Custom HPC colors are available. Popular paint brands may be combined with our exclusive HPC formulation to produce unique designs for any project.

    To produce an order for custom HPC colors, please be aware of the following.

    • There is a minimum requirement of 700 square feet of Sonex® Acoustical Foam.
    • We require the brand name, paint color and number.
    • There is a setup fee is for each custom color.
    • We require a deposit for the order.

    Customers with an order for custom HPC colors will receive a sample to approve prior to producing the order.

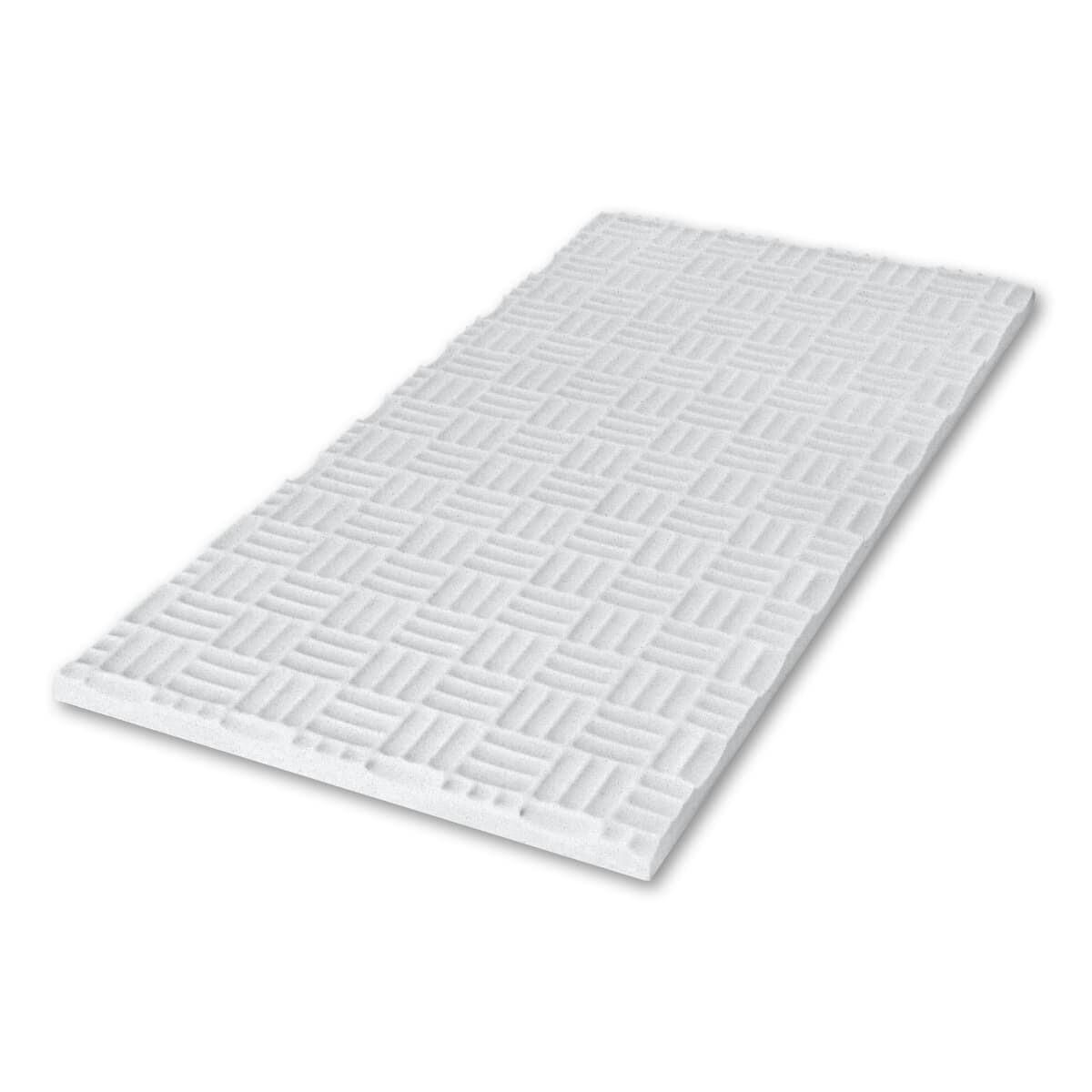

Sonex® Valueline Acoustic Foam

Rated 5.00 out of 5 based on 3 customer ratings
(3 customer reviews)

$184.00$387.00

Manufacturer: Pinta Acoustic
Size: 2' x 4'
Clear
    Reset options
Add to cart to see bulk discount pricing!
SKU: FOMSONVAL
Pricing ask a question

Sonex® Valueline Acoustic Foam offers an affordable yet effective means of sound control. The subtle surface pattern on these panels renders them inconspicuous in most settings, making them suitable for a variety of interior settings, including manufacturing facilities, churches, and classrooms. The unique surface pattern absorbs sound and should be used in applications that do not require a pattern match across adjoining pieces. Sonex® Valueline foam maintains a Class 1 fire-rating that meets or exceeds most building codes, making it acceptable in virtually any environment where cost-effective acoustical control is needed.

Sonex® Valueline Acoustic Foam is available in numerous colors, including natural grey, natural white, ColorTec Charcoal and various HPC coatings. HPC Coatings cover the panel face and edges.

Features:

  • Reduces echo and reverberation
  • Improves speech intelligibility
  • Exceptional acoustical performance
  • Mold-resistant, fire-retardant

Technical Information:

  • Size: 2′ x 4′
  • Thickness: 1-1/2″, 1-7/8″, 2-1/2″
  • Part Numbers: VLW-35, VLW053, VLW-60, VLW-35HW, VLW-53HW, VLW-60HW, VLC-35, VLC-53, VLC-60
  • Material: Open-cell melamine-based foam
  • Colors: Natural Grey, Natural White, ColorTec Charcoal, HPC Coated
  • Density: 0.5 to 0.7 lbs./cu. ft. (ASTM D3574-77)
  • Fire Rating: Class 1 per ASTM E84
  • Microbial Growth: Passes UL 181, section 11
  • Fungus Resistance Rating: #0 per ASTM G21
  • NRC: 1-1/2″ (0.75), 1-7/8″ (0.95), 2-1/2″ (1.05)
Sound Absorption (Hz) ASTM C423-90a
Thickness125250500100020004000NRC
1-1/2″0.080.290.730.940.970.890.75
1-7/8″0.170.551.071.151.081.100.95
2-1/2″0.190.621.151.211.141.201.05

Installation Method:

  • These panels mount easily to any wall or ceiling surface with a water-based construction adhesive.
  • For best results, install this product at the end of your construction project.
  • Use clean gloves to prevent soiling material.
  • Melamine foam is fragile, please handle with care.
  • Do not install material of unacceptable quality.

For more information on our Sonex® Valueline Acoustic Foam,
call us at 800.782.5742 or contact our sales department.
