AlphaSorb® QS Acoustic Ceiling Cloud

Categories: , , , ,



select your options

AlphaSorb® QS Acoustic Ceiling Cloud

$80.00$115.00

Time to Ship: 2-3 Business Days
Clear
    Reset options
Quantity
ask a question

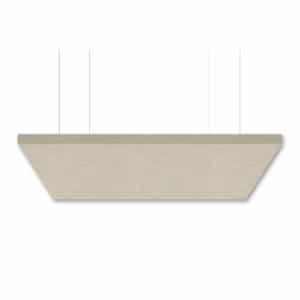

Ships in 2-3 business days! The AlphaSorb® QS Acoustic Ceiling Cloud allows you to horizontally suspend sound absorbing panels to reduce echo and reverberation. These clouds come in 10 different colors, 2 different sizes and 2 thicknesses. As a DIY (Do it yourself) solution, you select the cloud quantities, sizes and colors to acoustically treat your space.

Each cloud is wrapped with industry standard Guilford of Maine FR701 Style 2100 acoustically transparent fabric wrapped around a 6-7 pound per cubic foot acoustical core. Underneath the fabric is a high density fiberglass acoustical core for maximum sound absorption. With a Class A fire rating, these panels will meet building code requirements for both public and private facilities.

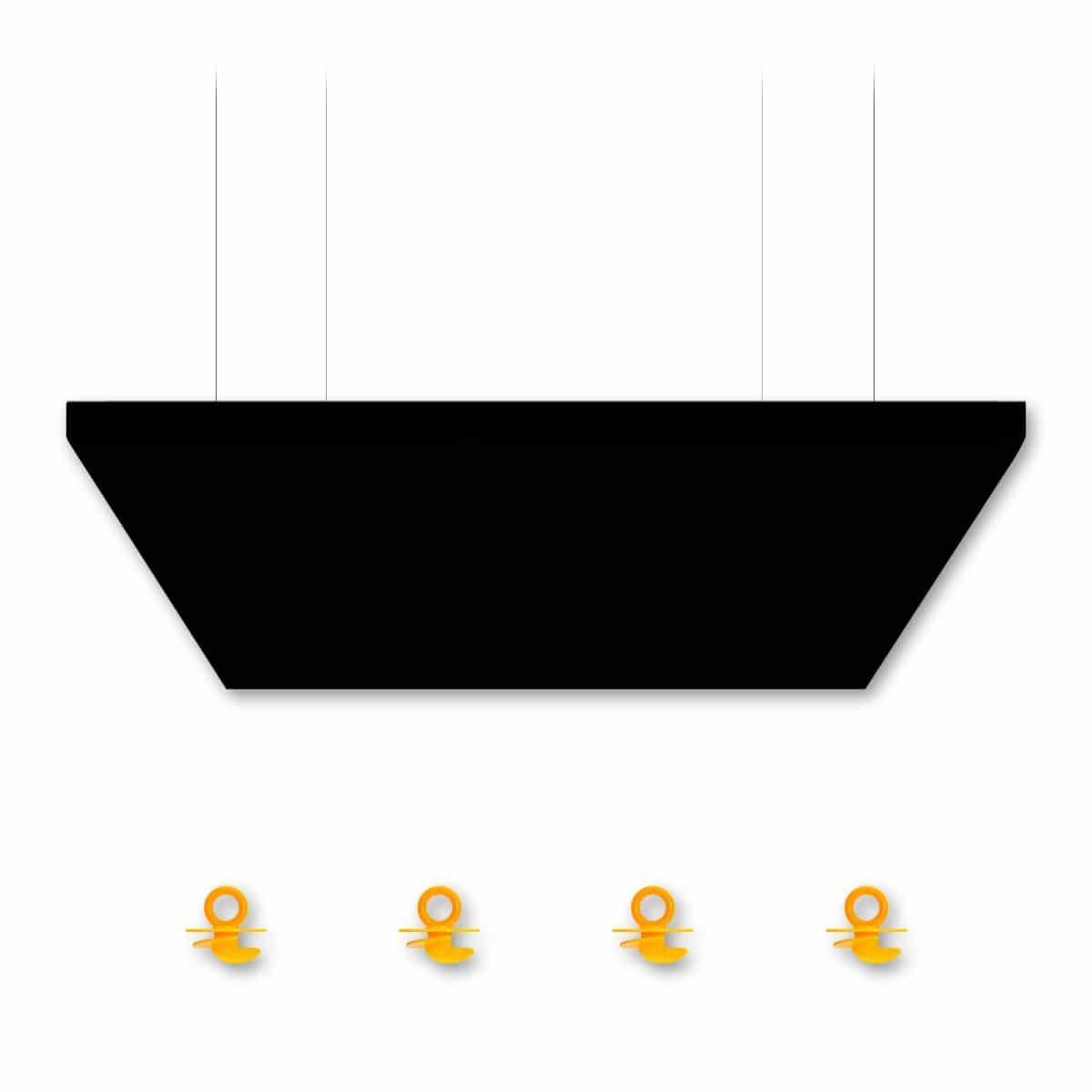

These quick ship clouds ship with Rotofast Ceiling Cloud Anchors for easy installation. The cloud anchors simply screw into the back of the panel. This provides four eye hook mounting points, ready to be suspended from the ceiling. Ceiling tile wire, aircraft cable, high test fishing line, hooks with chain or other suspension hardware can then be run through the Rotofast eye hooks. Then secure the suspension hardware to appropriate ceiling anchors to complete the installation.

Use these panels to expand or customize the AlphaSorb® QS Acoustic Panel, AlphaSorb® Acoustic Panel Room Kit or the AlphaSorb® Pro Acoustic Panel Room Kit.

These acoustical ceiling clouds are a quick and easy solution for a variety of applications including Offices, Conference Rooms, Home Entertainment, Teleconferencing, Videoconferencing, Broadcast and Recording Studios, Restaurants and more. These may be used in any space that needs a quick and effortless acoustical solution.

Features:

  • Quick Ship – These clouds ship in 2-3 business days!
  • Two sizes, two thicknesses and ten colors
  • Mix and match sizes and colors
  • Quick and easy installation
  • Reduce reverberation and flutter echo
  • Improves speech intelligibility

Technical Information for AlphaSorb® QS Acoustic Ceiling Cloud:

  • Panel Sizes (nominal): 2′ x 4′, 2′ x 2′
  • Actual Panel Sizes:
    • 2′ x 2′: 23-3/4″ x 23-3/4″
    • 2′ x 4′: 23-3/4″ x 47-1/2″
  • Thickness: 1″, 2″
  • Core: 6-7 pound per square foot density acoustical substrate
  • Fabric Finish: Guilford of Maine FR701 Style 2100 (10 Colors)
  • Edge: Natural square edge
  • Mounting options:
    • Rotofast ceiling cloud anchors (included)
    • Cable (Ceiling tile wire, aircraft cable, or other) and appropriate ceiling anchors provided by installer
  • Fire Rating: Class 1 or A per ASTM E84
  • NRC: 0.85, 1.15
Sound Absorption (Hz)
Thickness125250500100020004000NRC
1″0.140.270.801.111.141.140.85
2″0.220.811.241.301.211.161.15

For more information on our AlphaSorb® QS Acoustic Ceiling Cloud,
call us at 1-800-782-5742 or contact our sales department.

ASI's Acoustical Room Kit Review on Action On Film

ASI's Acoustical Room Kit Review on Action On Film

Independent Filmmaker and Director Del Weston reviews the Acoustical Room Kit from Acoustical Solutions.

Acoustical Room Kits come with the perfect number of decorative sound absorbing acoustical wall panels for your small, medium, or large room in two standard colors, ready to ship in 2-3 days. This easy to install product is ideal for improving sound intelligibility in mixing rooms and production studios.

Data Sheet

Data Sheet for AlphaSorb® QS Acoustic Ceiling Cloud

Installation Guide

Installation Guide for AlphaSorb® QS Acoustic Ceiling Cloud
