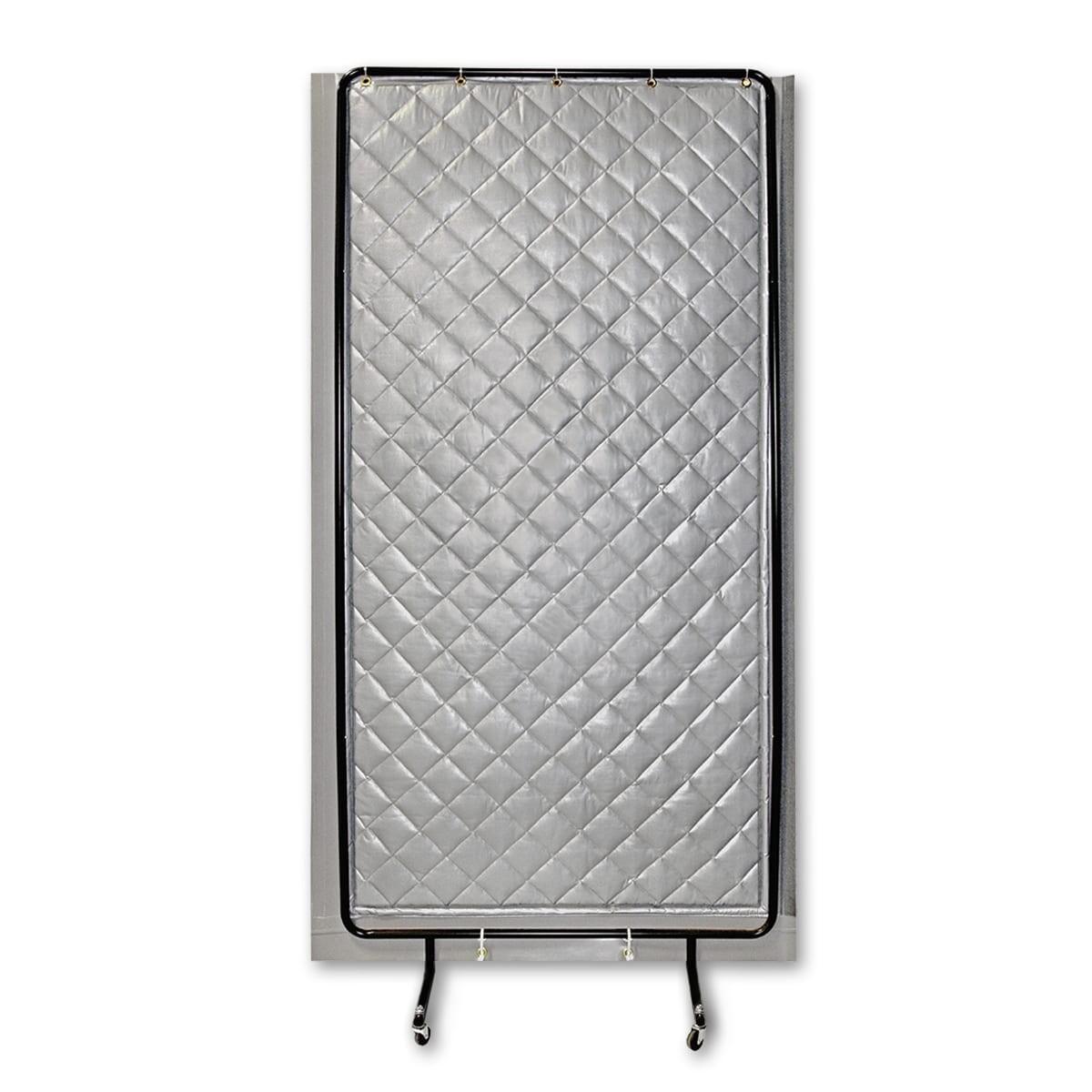

PrivacyShield® Absorptive Soundproofing Blanket Partition
Product Description
Our PrivacyShield® Absorptive Soundproofing Blanket Partition, (formerly the ABBC-13 AudioSeal® Portable Blanket Screen) is a quilted sound barrier blanket that attaches to a tubular steel frame for use as a portable acoustic room divider. These screens may be used individually or in groups to create partial noise barrier enclosures around noisy machinery or other equipment. The quilted absorptive face helps to reduce ambient noise, while the barrier back helps to block the direct path of sound. The collapsible frame is available with or without casters for maximum portability and flexibility.
The PrivacyShield® Absorptive Soundproofing Blanket Partition is a 54 in. wide, 1 lb. per sq. ft. barrier-backed composite panel with a 48 in. wide quilted fiberglass face. Mating hook and loop fasteners sewn onto vertical edges allows for easy connection of multiple units. Curtain panels are manufactured with grommets along the top and bottom edges and attach to the metal frame using the included zip ties. Then face the absorptive quilted fiberglass layer towards the sound you wish to reduce.
Typical uses include sound partitions for noisy areas where abuse resistance, excellent durability, and portability are desired. These are the perfect material to create acoustical partitions for saws, grinders, motors, compressors, and other noisy equipment. The blankets are industrial grade and may be wiped clean.
Technical Information for PrivacyShield® Absorptive Soundproofing Blanket Partition
- Size: 54″ (w) x 98.5″ (h) (nominal)
- Quilt thickness: 1″, 2″ (nominal; actual thickness may vary after quilting)
- Materials: Barrier-backed quilted sound blanket that mounts to a tubular steel frame with zip ties to create a portable acoustic screen
- Blanket panel: 54″ wide 1 pound per square foot barrier-backed composite panel with 48″ wide quilted vinyl coated cloth face. Curtain panels are manufactured with grommets for attaching to the metal frame and mating hook and loop fasteners sewn onto vertical edges.
- Frame: 1″ diameter powder coated tubular steel frame 48″ (w) x 96″ (h) with 4″ high platform feet for an overall height of 100″. With casters, overall height is 103″.
- Casters: Optional 2″ Rubber swivel casters
- Color: Grey quilted facing, grey barrier backing, black tubular frame
- Fire Rating: Class A per ASTM E84
- Intended Use: Interior Acoustic partition, sound absorption, sound blocking
- NRC: 1″ (0.70), 2″ (0.85)
- STC: 1″ (27), 2″ (32)
Sound Absorption (Hz) | |||||||
Thickness | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
1″ | 0.12 | 0.47 | 0.85 | 0.84 | 0.64 | 0.62 | 0.70 |
2″ | 0.07 | 0.27 | 0.96 | 1.13 | 1.08 | 0.99 | 0.85 |
Sound Blocking Performance (Hz) | |||||||
Thickness | 125 | 250 | 500 | 1000 | 2000 | 4000 | STC |
1″ | 11 | 16 | 24 | 30 | 35 | 35 | 27 |
2″ | 13 | 20 | 29 | 40 | 50 | 55 | 32 |
WARNING: This product can expose you to chemicals including formaldehyde and DINP, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
