  1. Will putting a shield in front of the amplifier fix our problems?
  2. Usually not by itself. If you do not have acoustically absorbent treatments to the sides and behind your amplifier, you may end up with a very roomy sound in the audience areas. We strongly recommend the use of sound absorbing panels on the lower half of the ClearSonic Panels as well as panels behind and beside your amplifier to soak up all that excess acoustic energy. AmpPacs with list and Sorber panels provide the best sound reduction.

  3. What are the shield panels made of?
  4. The standard ClearSonic Panel systems are made of 1/4-inch thick American made acrylic sheet, similar to Plexiglas™.

  5. Will the hinges hold up?
  6. The full-length heavy-duty plastic hinges have been improved several times since 1995 and hold up very well. The latest design incorporates a “tooth” that snaps into a groove along the long edge of each panel, ensuring that the panels will not come apart. This unique hinge also allows our systems to fold “accordion style” for easy transport. The flexible part of ClearSonic hinge is at least 0.06″ thick, almost twice the thickness of our competitor’s catalog bought hinge. We own the die for our heavy-duty extruded hinge. No one else has it. Don’t settle for some flimsy, off-the-shelf hinge from a competitor that may be only 0.038″ inches thick or less at the flexible part that will split and fail in short order.

  7. Do I need to add more acrylic sections if the volume is still too loud?
  8. Many people ask if more panels will help, and sometimes it will, although sometimes less acrylic and more acoustic panel treatment is necessary. Adding more acrylic will reflect more direct energy, but that energy still needs go somewhere. Don’t just trade a loud direct amplifier sound for a loud roomy sound! Sound absorbing panels greatly improve the effectiveness of acrylic shields by soaking up much of the direct and reflected sound coming off the amplifier and shields.

  9. Is your amplifier shield factory-assembled and packaged well enough to take the abuse of shipment?
  10. ClearSonic Panels ship in a heavy-duty box that includes extra packing materials. Once again, it costs us more to do this, but we feel that drum shields won’t do you much good if they arrive broken. If your shipment appears to be damaged on arrival, be sure to note the damage with the carrier and contact us immediately.

  11. What is the return policy?
  12. ClearSonic Panels are shipped with the paper masking on the surface of the acrylic to prevent scratches during transit. Returns are not accepted if the paper masking has been removed. Returns may be considered if the product is unused and in its original packaging. Returns will be handled on a case per case basis and are subject to restocking fees and return shipping costs. Original shipping costs are non-refundable.

ClearSonic AmpPac 11



$256.52

Height: 24"
Clear
SKU: DRMAMPPAC11

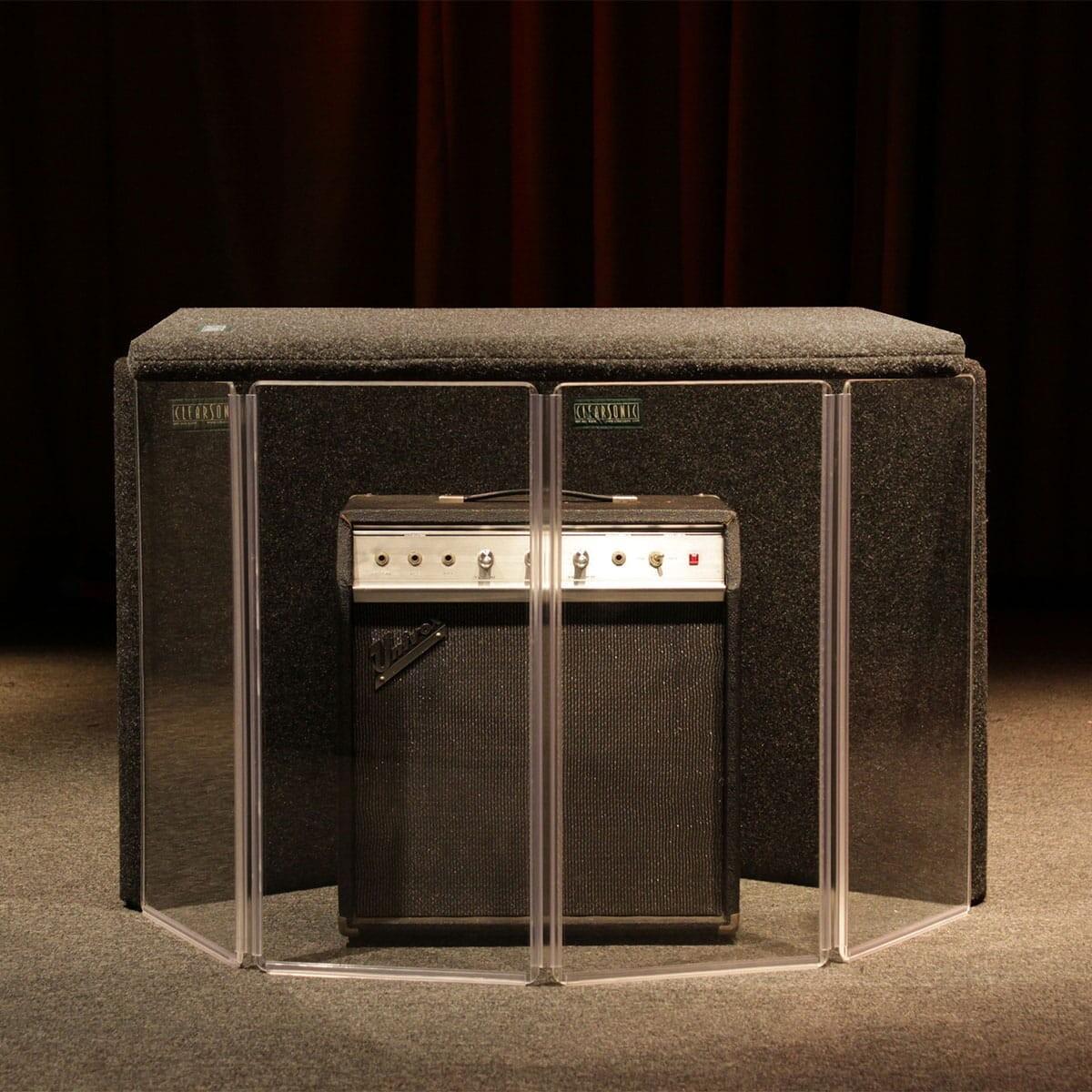

The ClearSonic AmpPac 11 amplifier isolation shield is used to create an enclosure for a small combo amp or speaker cabinet and comes with a lid. Use these amp shields to control volume on stage or in the studio. This will provide better separation between instruments for recording and live sound applications.

Th AmpPac 11 is the AmpPac 10 with a lid baffle added. Wrap the  A1224x4 shield around the front of the speaker cabinet and use the two S2224 SORBER baffles, tacked together with included Velcro,  and placed in a ‘V’ configuration around the back. This reduces the amount of sound bleeding out the back. An S2433 baffle is placed on top to reduce overall volume even more. We recommend leaving a gap near the back of the lid to allow for air exchange. (This is especially important with tube amps!)

ClearSonic products are pre-assembled, portable, and less expensive than a DIY speaker enclosure.

Technical Information for ClearSonic AmpPac 11:

  • Nominal Overall Size: 35″ wide x 30″ deep x 24″ high
  • Intended Use: Designed for a 1×12 speaker cabinet
  • ClearSonic Part Number: AP11
Included Parts
Part #Old Part#Description
A1224x4A2-4(4) 12″ x 24″ clear shield sections (front) 48″ wide x 24″ high
S2224S2D(2) 22″ x 24″ SORBER 1.6″ thick with Velcro (Dark Grey)
S2233S3D(1) 22″ x 33″ SORBER Lid 1.6″ thick
Sound Absorption (Hz)
(SORBER Panels)
125250500100020004000NRC
0.290.601.111.121.101.071.00
Sound Blocking Performance (Hz)
(1/4″ Acrylic Panels)
10010004000
-7 dB-13 dB-28 dB

For more information on our ClearSonic AmpPac 11,
call us at 800.782.5742 or contact our sales department.
