ClearSonic AmpPac 41
Product Description

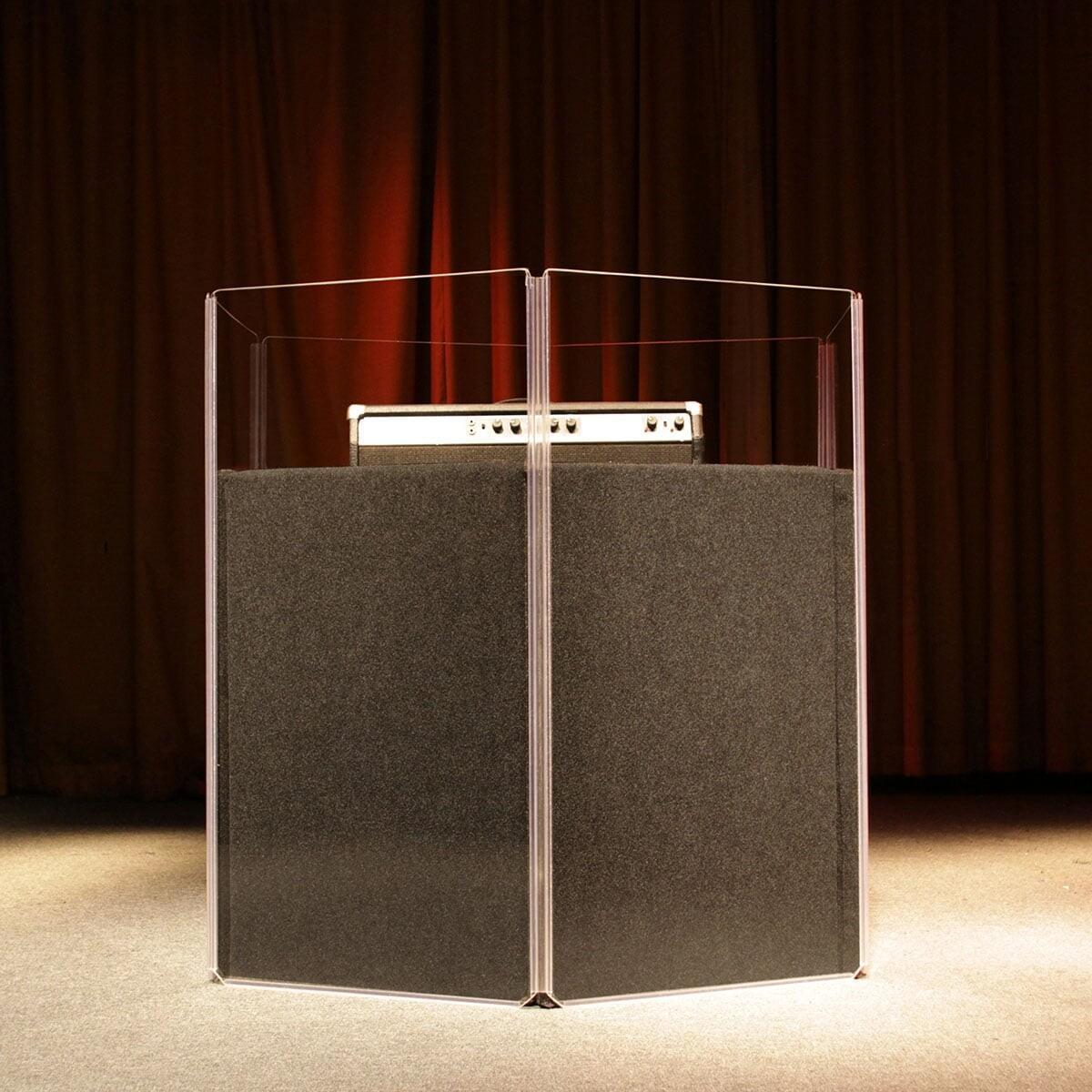

The ClearSonic AmpPac 41 amplifier isolation shield creates a surrounding enclosure for larger amps and speaker cabinets. Use these amp shields to control volume on stage or in the studio. This will provide better separation between instruments for recording and live sound applications.
AmpPac 41 consists of an six panel ClearSonic shield that completely surrounds the cabinet. The (6) SORBER baffles attach to the inside of the acrylic to absorb the reflected sound. to achieve an approximate sound reduction of 50%.
ClearSonic products are pre-assembled, portable, and less expensive than a DIY speaker enclosure.
Technical Information for ClearSonic AmpPac 41
- Nominal Overall Size: 45″ wide x 30″ deep x 48″ high
- Intended Use: Designed for a 4×12 or 4×10 speaker cabinet
- Sound Reduction: Approximately 50%
- ClearSonic Part Number: AP41
Included Parts | ||
Part # | Old Part# | Description |
A2448X6 | A4-6 | (6) 24″ x 48″ clear shield sections for front and rear |
S2233 | S3D | (6) 22″ x 33″ SORBER 1.6″ thick with Velcro (Dark Grey) |
Sound Absorption (Hz) (SORBER Panels) |
||||||
125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
0.29 | 0.60 | 1.11 | 1.12 | 1.10 | 1.07 | 1.00 |
Sound Blocking Performance (Hz) (1/4″ Acrylic Panels) |
||
100 | 1000 | 4000 |
-7 dB | -13 dB | -28 dB |
