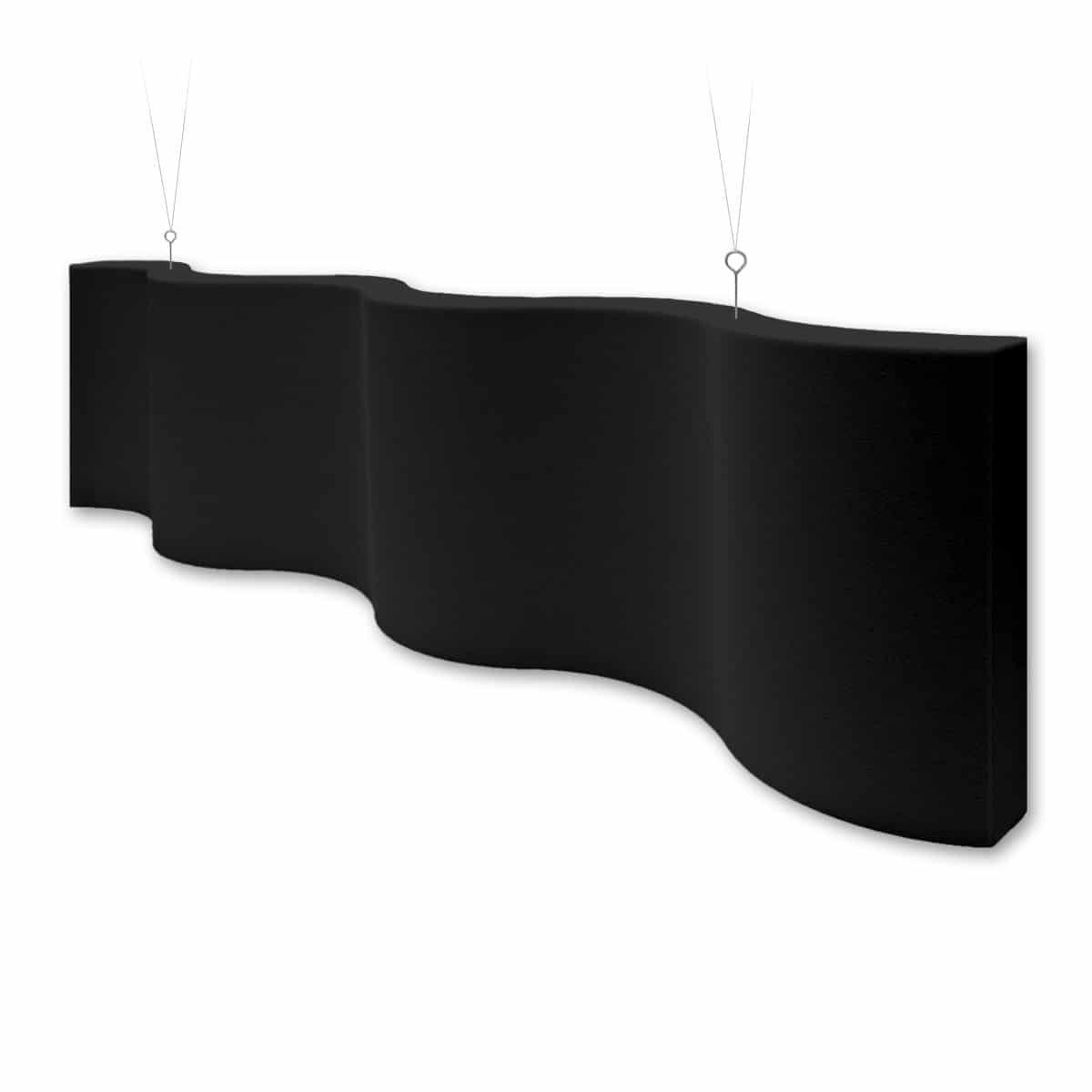

Whisperwave® Ribbon Sound Baffle

Categories: , , , ,

WhisperWave® Ribbon Sound Baffle

select your options

Whisperwave® Ribbon Sound Baffle

4 out of 5 based on 2 customer ratings
(2 customer reviews)

$177.00$334.00

Manufacturer: Pinta Acoustic
Size: 1' x 4' x 2"
Clear selection
    Reset options
QTY
ask a question
WhisperWave® Ribbon Sound Baffle - Natural White (Non-Coated)WhisperWave® Ribbon Sound Baffle - Arctic White (HPC Coated)WhisperWave® Ribbon Sound Baffle - Natural Grey (Non-Coated)WhisperWave® Ribbon Sound Baffle - Light Grey (HPC Coated)WhisperWave® Ribbon Sound Baffle - Medium Grey (HPC Coated)WhisperWave® Ribbon Sound Baffle - Dark Grey (HPC Coated)WhisperWave® Ribbon Sound Baffle - Light Blue (HPC Coated)WhisperWave® Ribbon Sound Baffle - Ivory (HPC Coated)WhisperWave® Ribbon Sound Baffle - Beige (HPC Coated)WhisperWave® Ribbon Sound Baffle - Black (HPC Coated)WhisperWave® Ribbon Sound Baffle - Brown Black (Premium HPC Coated)WhisperWave® Ribbon Sound Baffle - Blue Violet (Premium HPC Coated)WhisperWave® Ribbon Sound Baffle - Eggplant (Premium HPC Coated)WhisperWave® Ribbon Sound Baffle - Mustard Yellow (Premium HPC Coated)WhisperWave® Ribbon Sound Baffle - Olive Green (Premium HPC Coated)WhisperWave® Ribbon Sound Baffle - Orange Red (Premium HPC Coated)Sonex® Acoustic Foam Color Chart (Colors may vary depending on your screen resolution and monitor settings,)Whisperwave® Ribbon Sound Baffle by Pinta Acoustic, Inc.WhisperWave® Ribbon Sound Baffles were installed in this conference room to improve the speech ineligibility as well as add an element of design.WhisperWave® Ribbon Sound Baffles were installed in this conference room to improve the speech ineligibility as well as add an element of design.Whisperwave® Ribbon Sound BaffleWhisperwave® Ribbon Sound BaffleWhisperwave® Ribbon Sound Baffle

The Whisperwave® Ribbon Sound Baffle allows you to unleash your creativity while reducing noise and reverberation. Add dimension and acoustical control right where you need it the most with Whisperwave® Ribbons. Suspend Whisperwave Ribbons from ceiling-mounted cables using supplied corkscrew hangers. They may be hung as high or as low as necessary to avoid obstacles in the ceiling, work around HVAC or to achieve a particular design.

Made from Class 1 fire-rated melamine foam, Whisperwave® products are offered in standard and custom sizes and curve patterns. Whisperwave® products are lightweight and easy to install. Whisperwave® products are available in natural grey, natural white or may be HPC Coated to add color and additional protection (see HPC color chart.)

Features:

  • Reduces echo and reverberation
  • Improves speech intelligibility
  • Exceptional acoustical performance
  • Mold-resistant, fire-retardant

Technical Information for Whisperwave® Ribbon Baffle:

  • Size: 4′ x 1′
  • Thickness: 2″
  • Part Numbers: WRB-2, WRB-2HW
  • Material: Open-cell melamine-based foam
  • Finishes: Natural Grey, Natural White or HPC Coated
  • Density: 0.5 to 0.7 lbs./cu. ft. (ASTM D3574-77)
  • Fire Rating: Class 1 per ASTM E84
  • Microbial Growth: Passes UL 181, section 11
  • Fungus Resistance Rating: #0 per ASTM G21
  • NRC (Sound Absorption Performance)
    • Natural Grey or Natural White – 2″ (0.85)
    • HPC Coated – 2″ (0.95)
Sound Absorption (Hz)
Sabins per (ASTM C423-90a)
125 250500100020004000AVE.
1.05.410.816.318.724.012.7

Installation Method:

  • Install the included corkscrew hangers in the field for ceiling-mounted cable installation (cable and cable mounts provided by installer)
  • Avoid hanging baffles more than 10 feet below the ceiling, as long tethering will cause them to sway in air currents.
  • For best results, install this product at the end of your construction project.
  • Use clean gloves to prevent soiling material.
  • Melamine foam is fragile, please handle with care.
  • Do not install material of unacceptable quality.
Whisperwave® Ribbon Sound Baffle
SKUColorSizeBaffles Per BoxPrice 1-19 BoxesPrice 20+ Boxes
BAFSONWWR142GRYNatural Grey1′ x 4′ x 2″8$177.00$159.00
BAFSONWWR142WHTNatural White$226.00$203.00
BAFSONWWR142HPCHPC Coated$317.00$285.00
HPC Coated (Premium)$334.00$301.00
Each box of baffles ships with 16 corkscrew hangers 2.9″ long.

Note: In March of 2016, the formulation of the melamine foam core used in Sonex products was improved. The appearance of Natural Grey, Natural White and HPC coated colors will differ from orders placed prior to this change.

For more information on our Whisperwave® Ribbon Sound Baffle,
call us at 1-800-782-5742 or contact our sales department.

2 reviews for Whisperwave® Ribbon Sound Baffle

  1. 5 out of 5

    :

    Looks good and did a reasonably good job. It controlled the echo reverberations in the Yoga Lobby that has 14′ ceilings and solid surfaces.

  2. 3 out of 5

    :

    Used product to control echo in office space.

What is HPC Coating?

HPC is a high performance coating that is applied to acoustical melamine foam base. Our exclusive water based HPC formulation improves durability and protects the acoustical foam from dust and dirt, allowing the surface to be cleaned using a damp cloth. The HPC coating is especially appropriate for use high-traffic areas. HPC Premium extends the HPC coating further by offering a line of brilliant colors from which to choose.

  • HPC Coating for Wall and Ceiling Panels:
    • Coating is applied to the face of panels only.
    • An edge coating option is available for when the edges of the panel will be exposed.
  • HPC Coating for Hanging Baffles and Clouds:
    • The coating will be applied to all exposed edges and sides.
  • HPC Coating for Drop-In Ceiling Tiles:
    • All necessary edges will be coated to provide a finished appearance.
Are custom HPC colors available?

Custom HPC colors are available. Popular paint brands may be combined with our exclusive HPC formulation to produce unique designs for any project.

To produce an order for custom HPC colors, please be aware of the following.

  • There is a minimum requirement of 700 square feet of Sonex® acoustical foam.
  • We require the brand name, paint color and number.
  • There is a set up fee is for each custom color.
  • We require a deposit for the order.

Customers with an order for custom HPC colors will receive a sample to approve prior to producing the order.

Corkscrew Hanger

Corkscrew Hanger

The Corkscrew hanger is hardware for use when installing acoustical melamine foam clouds and baffles for ceiling-mounted cable installation. These are available in two lengths. The shorter 1.5 in long…

Display Hook

Display Hook

These plastic Display Hooks twist easily and quickly onto any standard T-bar ceiling grid system. When used with plastic tie wraps or other hanging hardware, the hooks make for an…

Data Sheet

Data Sheet for Whisperwave® Ribbon Sound Baffle

Installation Guide

Installation Guide for Whisperwave® Sound Baffle

Detailed Drawing

Detailed Drawing for Whisperwave® Sound Baffle

LEED Statement

LEED Statement for Sonex® Acoustic Foam

LEED Credit Statement

LEED Statement for Sonex® Acoustic Foam

Cleaning Guide

Cleaning Guide for Sonex® Foam
